WR RCPT, DUP, SB, HD HG, 20A 125V, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL8300WWR
- UPC: 00783585320243
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

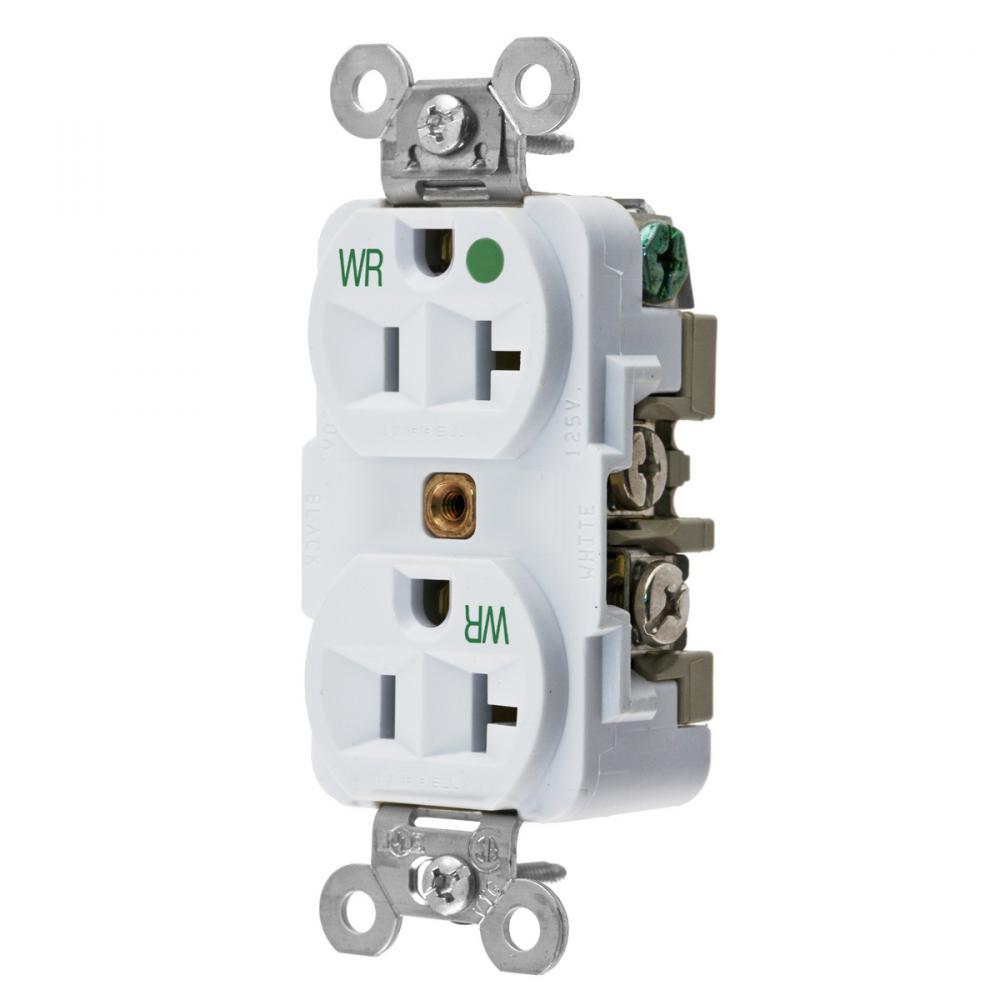

Straight Blade Devices, Weather Resistant Duplex Receptacle, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5- 20R, Gray
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Weather Resistant
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Special Features:
Weather Resistant
Standard:
NEMA WD1 and WD5, UL 498
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Traditional Duplex
UNSPSC:
39121406
Voltage Rating:
125
Wattage:
2,500
Weight:
.250 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
