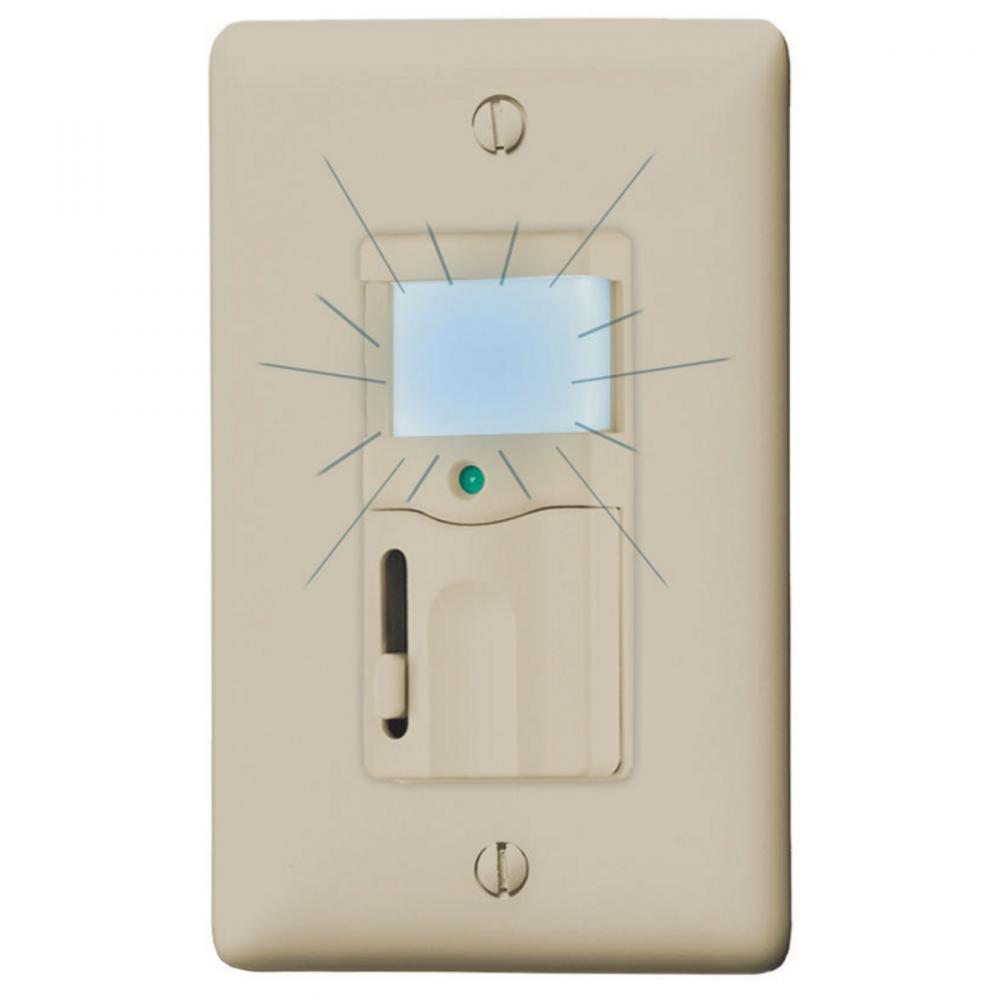

VAC SEN SW ILLUM W/DIM, 500W 125V,IV by Hubbell Wiring Device-Kellems
- Part Number: RMS120ILI
- UPC: 00883778301162
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Trade Select, Switches and Lighting Controls, Occupancy Sensor With Night Light, Dimming, 500 Watts, 120V AC, 150 Degree Field of View, Single Pole, Ivory
Specifications
Details
Category:
Lighting Controls
Application:
No Buttons
Brand Name:
WIRING DEVICE-KELLEMS
Connector:
Wire Leads
Control Output:
Input Voltage
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
PIR= Red LED
Installation Link:
Line Drawing Link:
Load:
500W Incandescent @ 120V AC
Mounting:
Screw Mount
Operating Cycles:
6,000 Cycles Minimum
Operating Temperature:
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Sensing Range:
42 to 54 Inches above the Floor
Sensitivity:
Adjustable W
Sensor:
Passive Infrared
Spec Sheet:
Special Features:
Night Light Version
Standard:
CEC Title 24 Certified;cULus Listed
Sub Brand:
HMOSS
Supply Voltage:
120V AC V
Target Size:
People in
Tech Drawing Link:
Type:
Residential Wall Switches
UNSPSC:
39122236
Weight:
.260 L
Manufactured By:
Hubbell Wiring Device-Kellems
