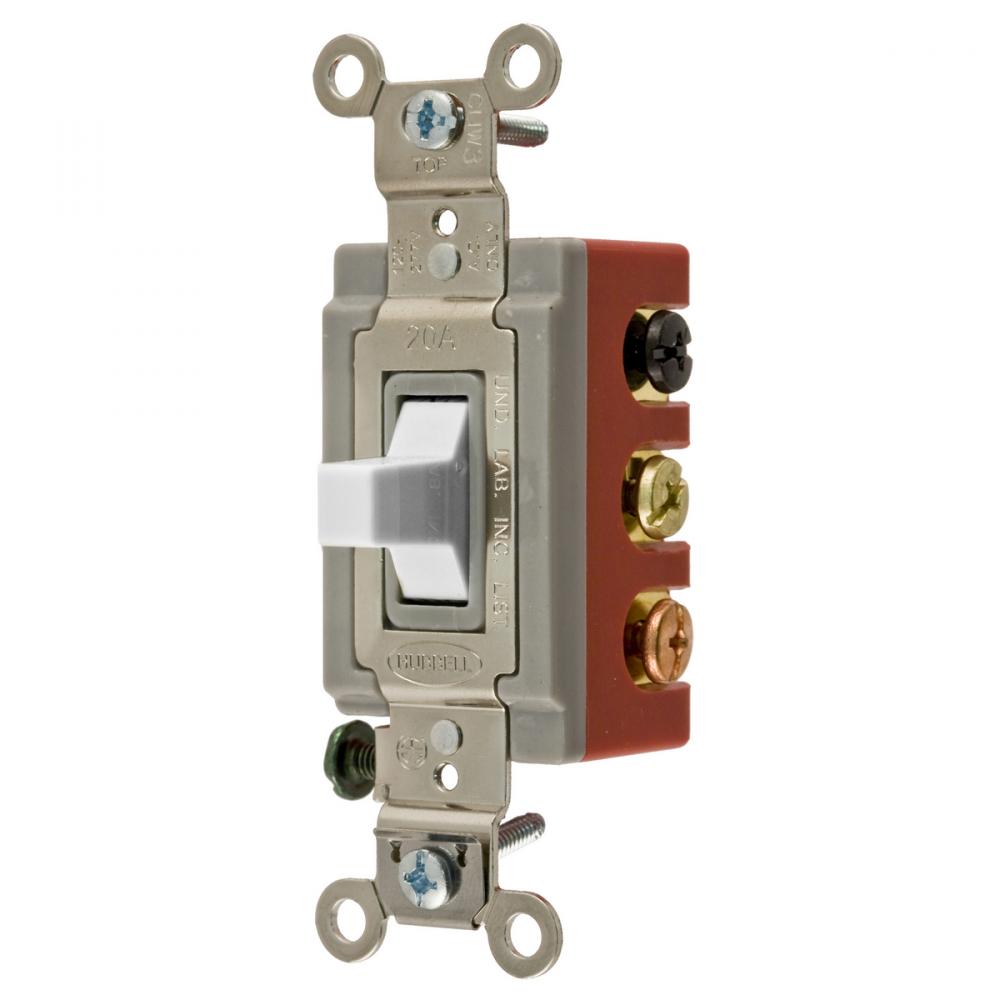

TOG, 20A 120/277V, DPDT CNTR OFF, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL1386W
- UPC: 00783585432694
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Extra Heavy Duty Industrial Grade Toggle Switch General Purpose AC, Double-Pole Double-Throw Center Off, 20A 120/277V AC, Back and Side Wired
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
20A
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Back and Side Wired
Contact Configuration:
Three Position Center Off
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
None
Line Drawing Link:
Mounting:
Screw Mount
Number Of Poles:
Single Pole Double Throw, Center Off
Operating Cycles:
50,000 Cycles
Operating Temperature:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized
Spec Sheet:
Special Features:
Standard Product
Standard:
NEMA WD1, UL20
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Type:
General Purpose Switches
UNSPSC:
39122211
Voltage Rating:
120/277
Wattage:
5540
Weight:
.250 L
Manufactured By:
Hubbell Wiring Device-Kellems
