SPIDER II BOX, 60A 3PH 120/208V, S/B by Hubbell Wiring Device-Kellems
- Part Number: SCSB0
- UPC: 00783585075617
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

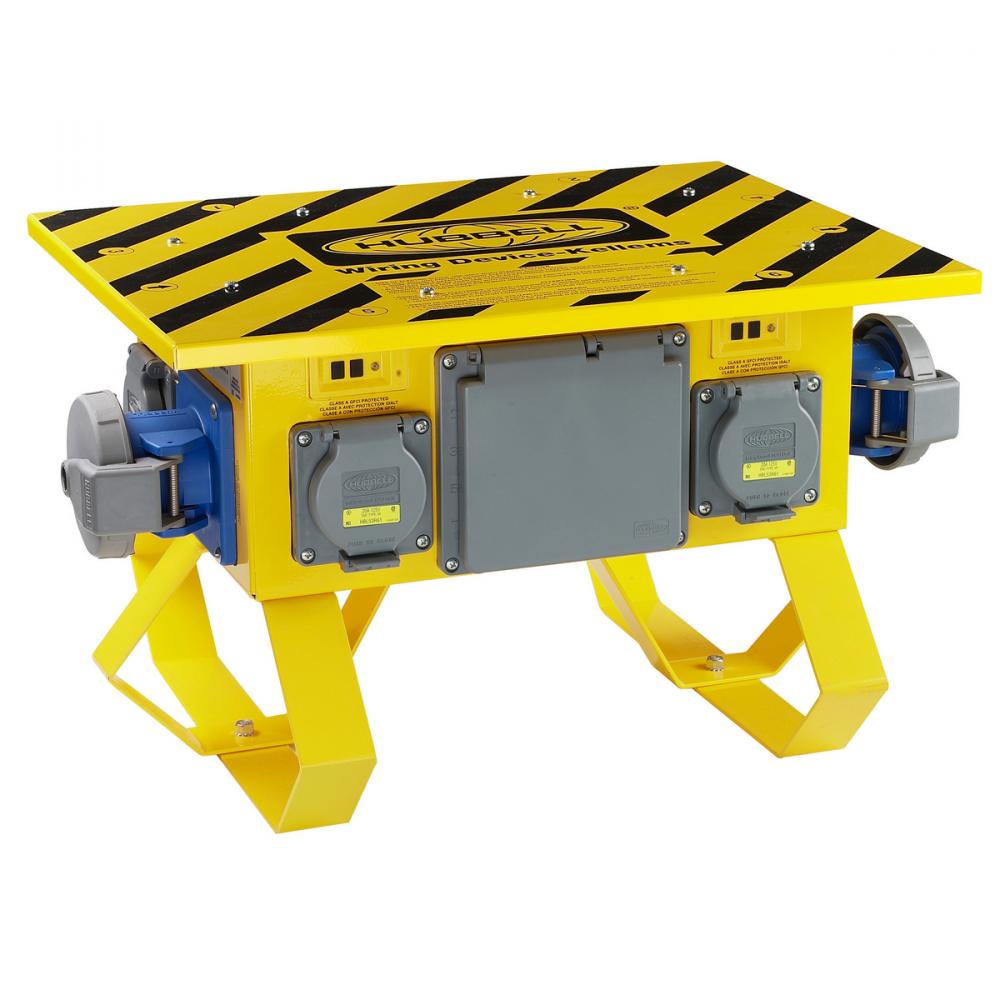

Temporary Power Products, Spider II Portable Power, Complete Unit, Straight Blade Style, With 6) 20A 125V Receptacles- 1) 60A 3-Phase Wye 120/208V AC Inlet and Outlet, Yellow
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
60
Application:
Heavy Duty Portable
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Pre-Wired
Country Of Origin:
US
Environmental Conditions:
Indoor and Outdoor
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Non-Mounted, Portable
NEMA Rating:
6) 5-20R, 1) 60A Non-NEMA In/Out
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
UL and cUL Listed
Sub Brand:
Spider Temporary Wiring Products
Type:
6-20A, 125V Straight Blade Receptacles, 1-60A, 3 Phase 120/208V Pin & Sleeve Inlet, 1-50A 125/250V Inlet, 1-60A 3 Phase 120/208V Pin & Sleeve Outlet
UNSPSC:
39121406
Voltage Rating:
Three Phase 120;Three Phase 208
Warranty Link:
Wattage:
12,480
Weight:
53.650 L
Manufactured By:
Hubbell Wiring Device-Kellems
