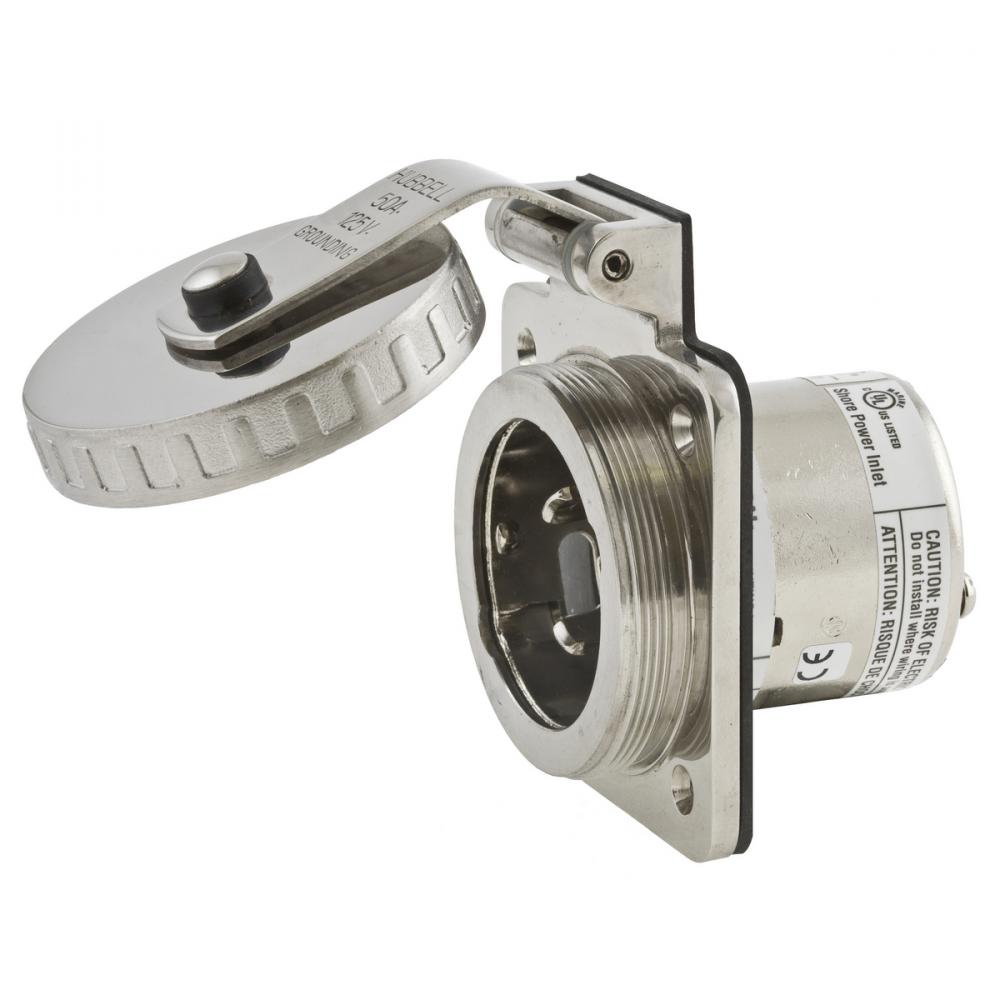

SHORE POWER INLET, 50A 125V, SS by Hubbell Wiring Device-Kellems
- Part Number: HBL503SS
- UPC: 00783585040578
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Chrome Plated Brass
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Marine Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Stainless
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Stainless Steel Housing
Standard:
UL Listed
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Hull Mount Single Inlet
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
6,250
Weight:
2.150 L
Wire Size:
#6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
