PS,IEC,SW RECP,3P4W,60A 125/250V,4X/IP69 by Hubbell Wiring Device-Kellems
- Part Number: HBLS460R12W
- UPC: 00783585478616
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

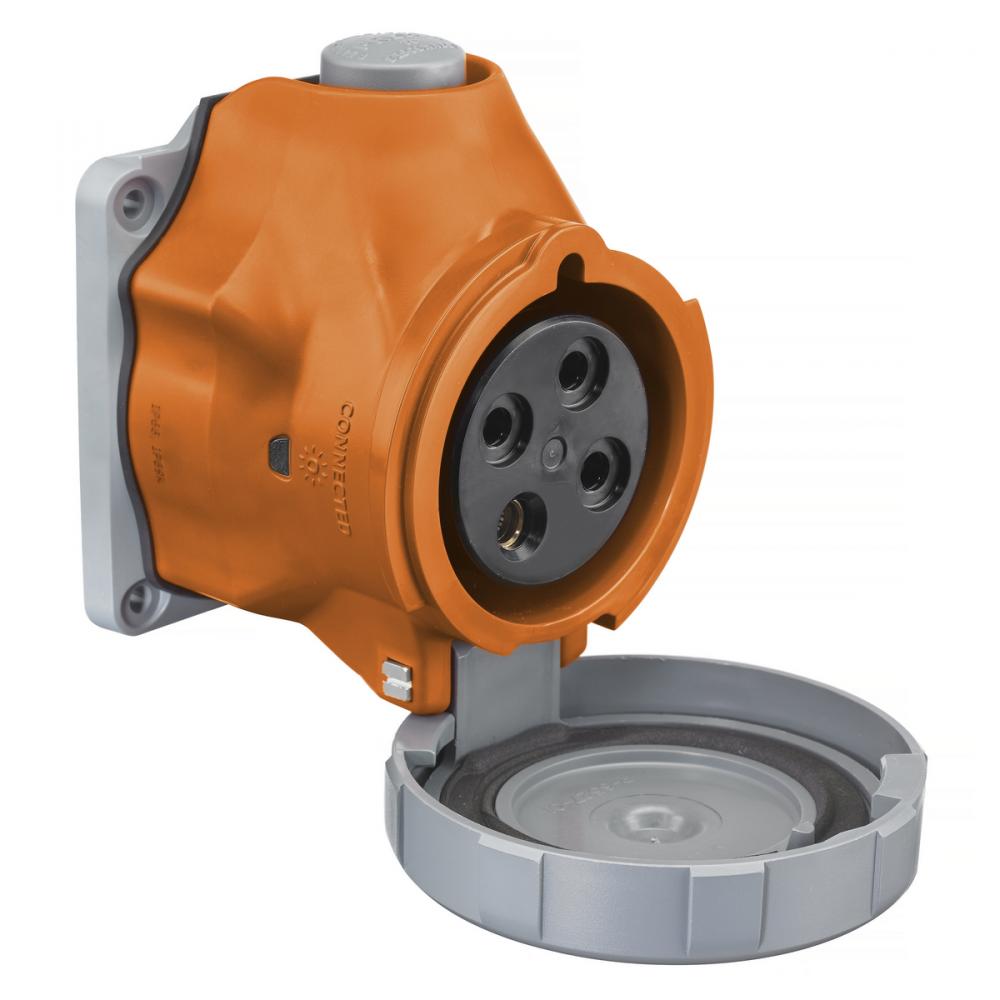

Heavy Duty IEC Pin and Sleeve, Receptacle, Switched, 60A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA4X/IP69K
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
60
Application:
Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Orange
Connection:
Box Terminals
Country Of Origin:
US
Dielectric Strength:
2,000V for 1 Minute
Environmental Conditions:
Indoor Dry
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Mounting Screws
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Products
Spec Sheet:
Special Features:
Low profile
Standard:
UL498/CSA
Sub Brand:
IEC Pin and Sleeve
Tech Drawing Link:
Temperature Rating:
-40 Degrees C to 70 Degrees C
Type:
Watertight Receptacle
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
15000
Weight:
2.700 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
