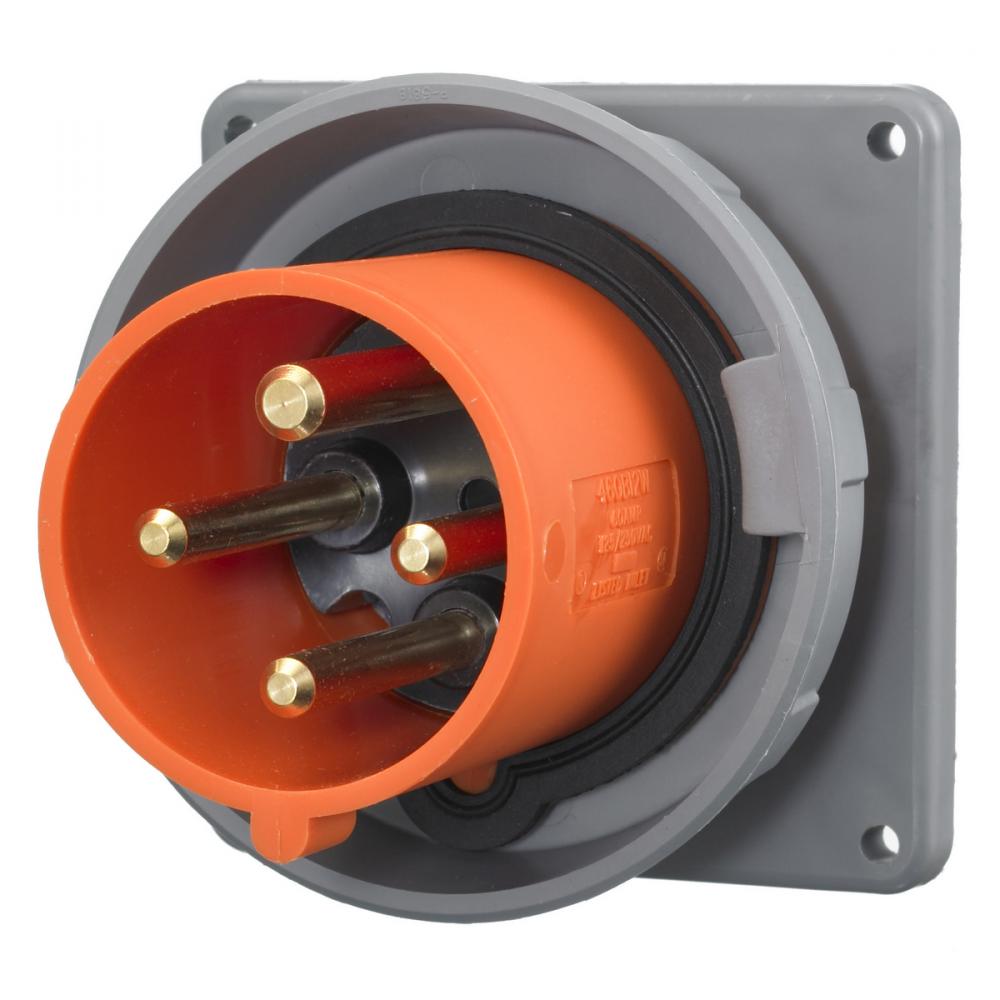

PS,IEC,INLET, 3P4W, 100A 125/250V,4X/69K by Hubbell Wiring Device-Kellems
- Part Number: HBL4100B12W
- UPC: 00783585403922
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 100A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Orange, Watertight
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Orange
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Watertight Inlet
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
25,000
Weight:
3.300 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
