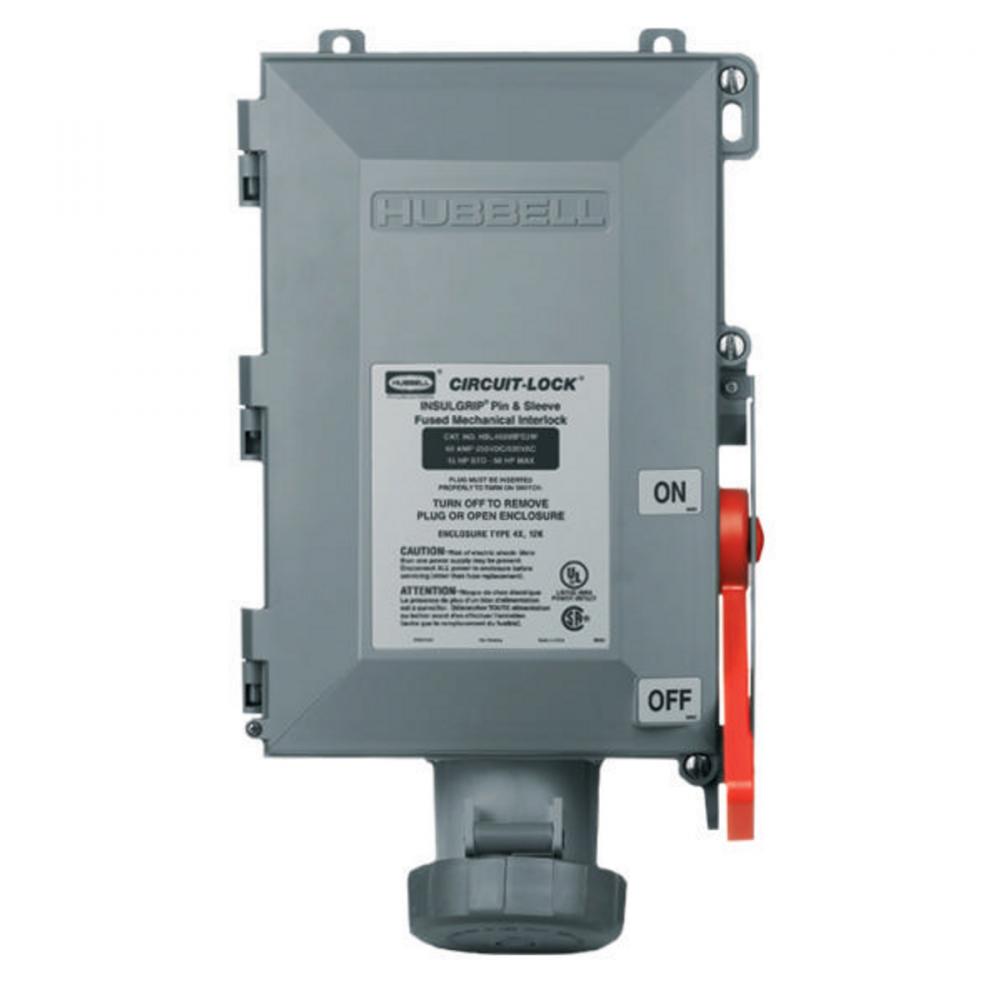

PS, IEC, MECHINT, 3P4W, 30A 3P 250V,FUSE by Hubbell Wiring Device-Kellems
- Part Number: HBL430MIF9W
- UPC: 00783585405957
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Fused Mechanically Interlocked Receptacle, 30A 3-Phase Delta 250 V AC, 3-Pole 4-Wire Grounding
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
High Ampacity Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Blue
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified;UL Listed for US and Canada
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Type:
Mechanical Interlock
UNSPSC:
39121406
Voltage Rating:
3 Phase 240
Warranty Link:
Wattage:
7,500
Weight:
16.350 L
Wire Size:
#12 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
