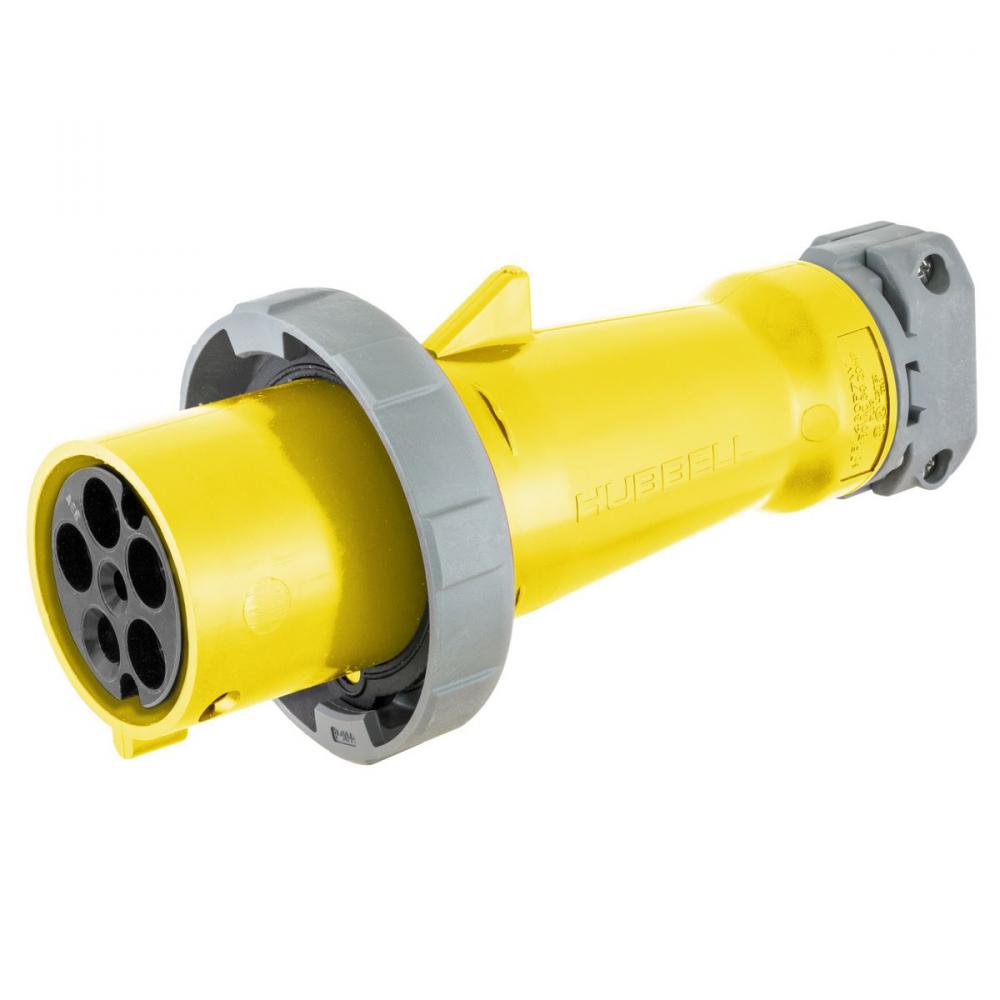

MARINE PS CONN, 4P5W, 100A 120/208V,REV by Hubbell Wiring Device-Kellems
- Part Number: M5100C9R
- UPC: 00783585510033
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
100
Application:
Marine Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#3 AWG to #1/0 AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Reversed Service
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
Sub Brand:
Pin and Sleeve
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Watertight Connector Body
UNSPSC:
39121421
Voltage Rating:
3 Phase Y 120/208
Warranty Link:
Weight:
4.750 L
Manufactured By:
Hubbell Wiring Device-Kellems
