LKG WT S/SHRD CONN, 30A 250V, L6-30R by Hubbell Wiring Device-Kellems
- Part Number: HBL2623SW
- UPC: 00783585231709
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

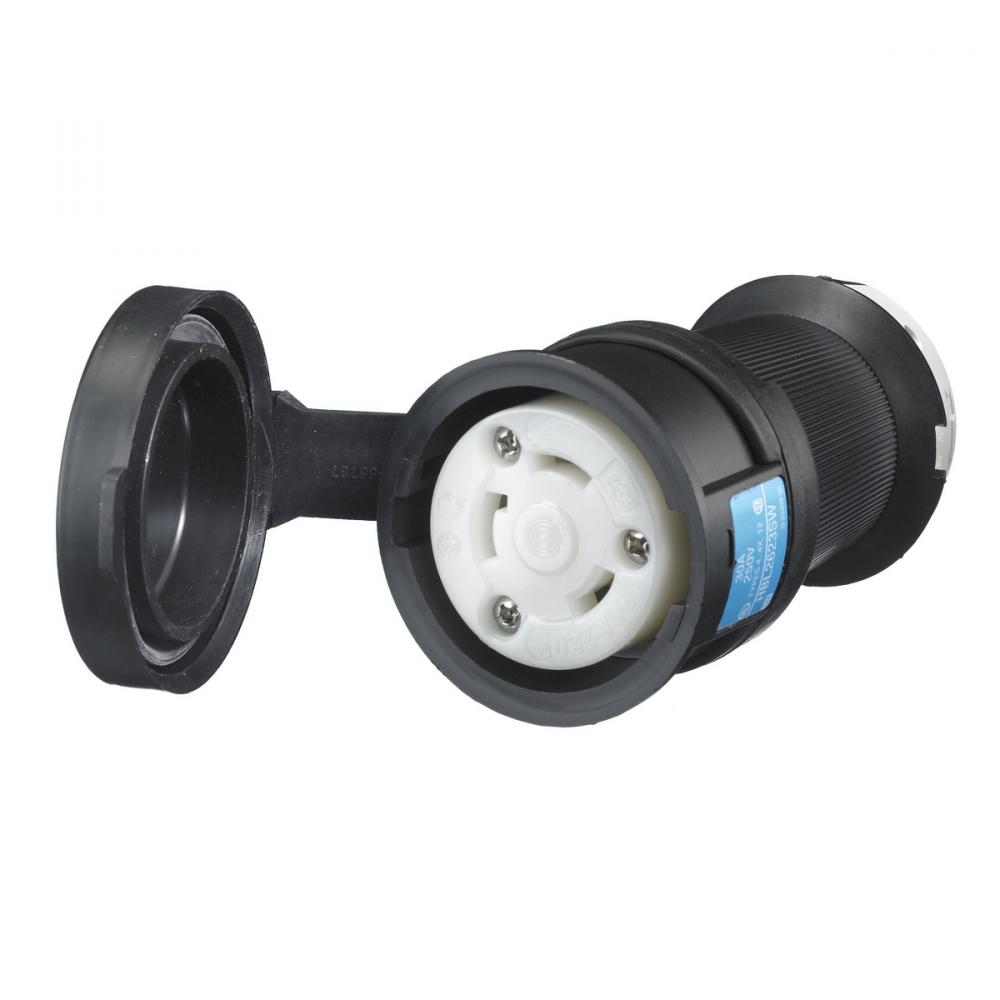

Locking Devices, Twist-Lock®, Watertight Safety-Shroud® Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Black PBT housing, White PBT clamps.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
L6-30R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.4 in x 2.57 in x 2.57 in
Spec Sheet:
Special Features:
Shrouded Watertight Construction
Standard:
UL Listed, CSA Certified To Type 4, 4X And Type 12
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.700 L
Manufactured By:
Hubbell Wiring Device-Kellems
