LKG RCPT, MDGT, 2P3W, 10A250V 15A125V by Hubbell Wiring Device-Kellems
- Part Number: HBL7582G
- UPC: 00783585237725
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

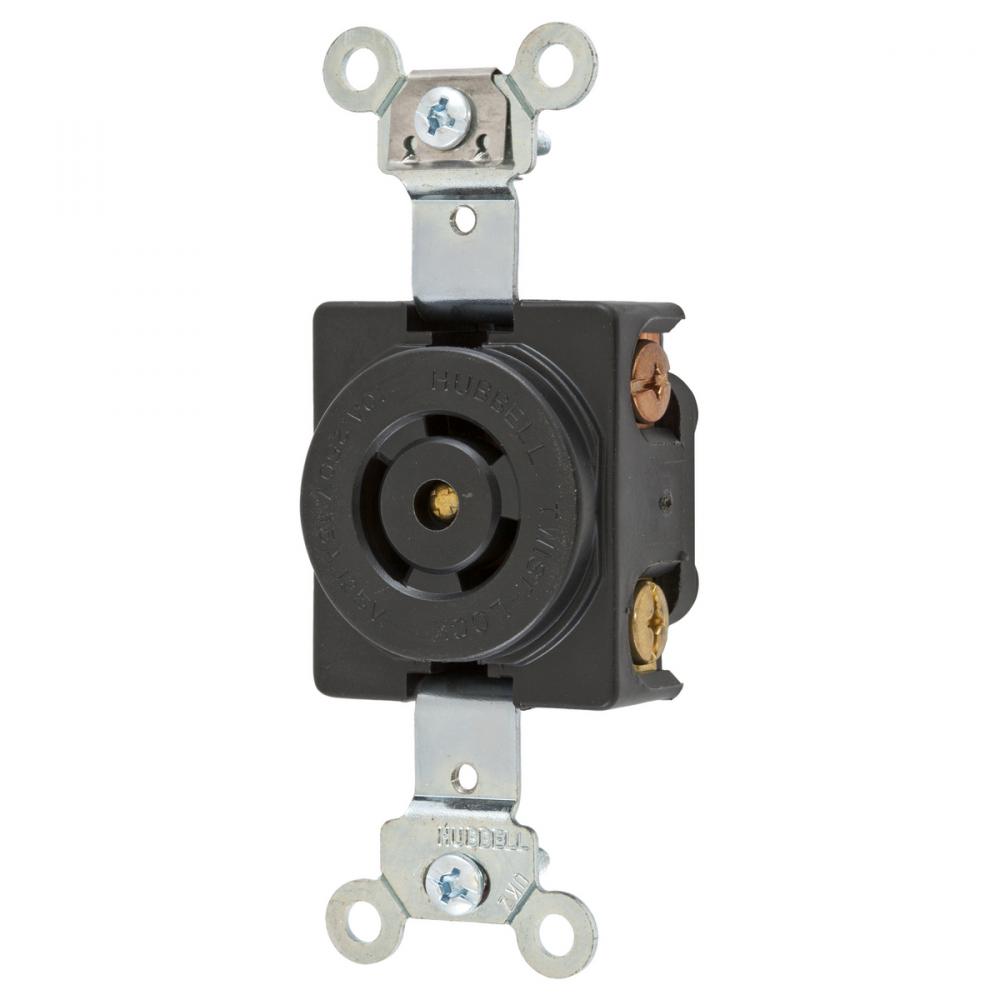

Twist-Lock® Industrial Single Flush Receptacle, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal Phenolic
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
10/15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Material:
Phenolic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.31 in x 1.53 in x 1.25 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
250/125
Warranty Link:
Wattage:
3,750
Weight:
.250 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
