LKG PLUG, CM, 20A 3PH 480V, L16-20P, YL by Hubbell Wiring Device-Kellems
- Part Number: HBL24CM31
- UPC: 00783585038513
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

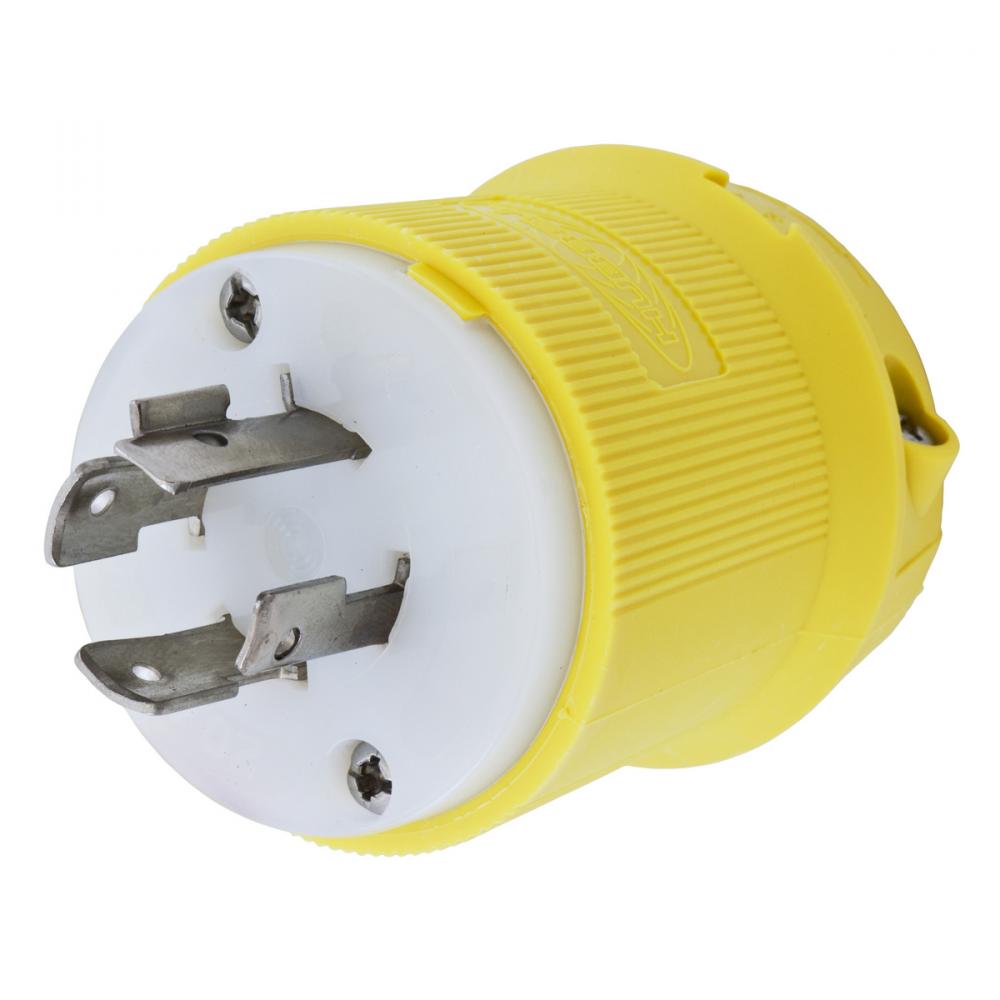

Twist-Lock® Marine Grade Male Insulgrip® Plug, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20P, Screw Terminal, Corrosion Resistant
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
20
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Terminal Screws
Cord Type:
All Listed Portables
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L16-20P
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
2.33 in x 2.33 in x 2.75 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Plugs
UNSPSC:
39121402
Voltage Rating:
480
Warranty Link:
Wattage:
9,600
Weight:
.350 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
