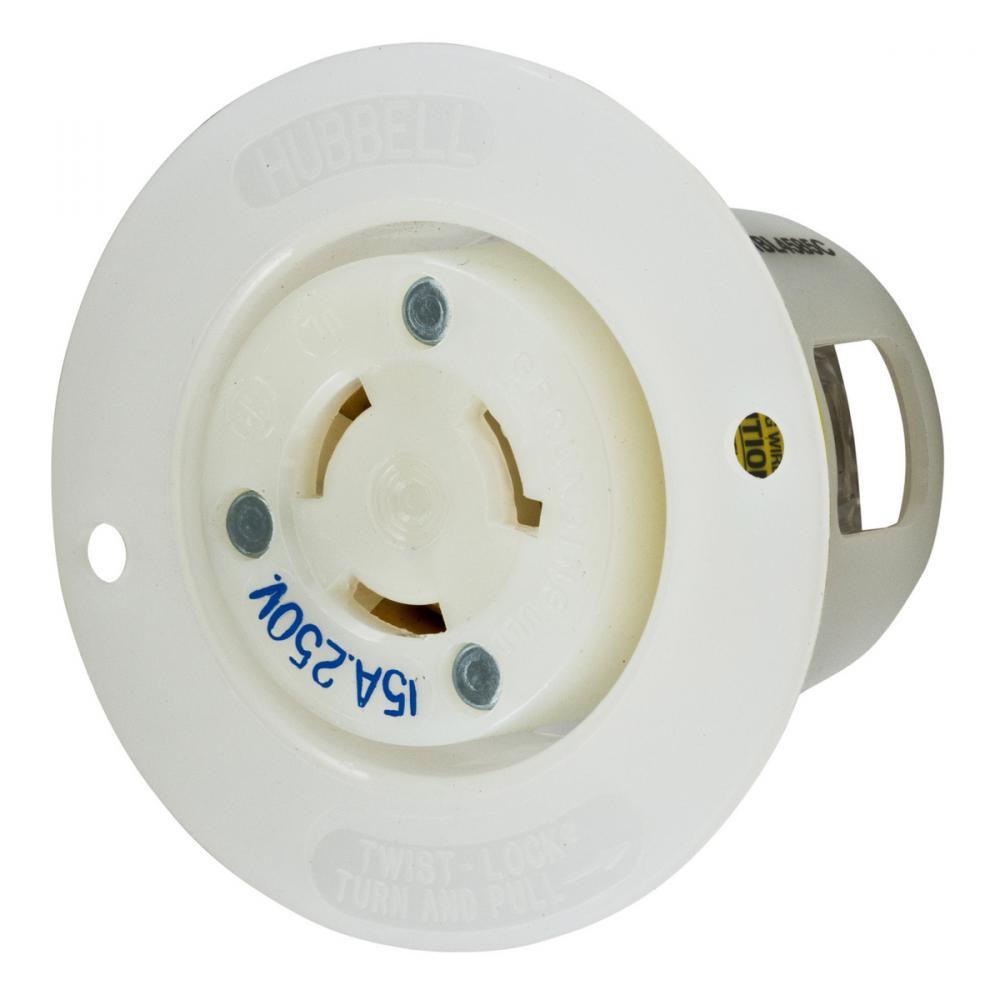

LKG FLG-RCPT,15A 250V,L6-15R,WH,NM

LKG FLG-RCPT,15A 250V,L6-15R,WH,NM by Hubbell Wiring Device-Kellems

  • Part Number: HBL4585C
  • UPC: 00783585170152
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Nylon casing, Back wired, White.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Insulgrip
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Line Drawing
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L6-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
RoHS Compliance:
Yes
Size:
2.56 in x 2.56 in x 1.72 in
Spec Sheet:
Spec Link
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Tech Drawing
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Warranty Information
Wattage:
3,750
Weight:
.086 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
