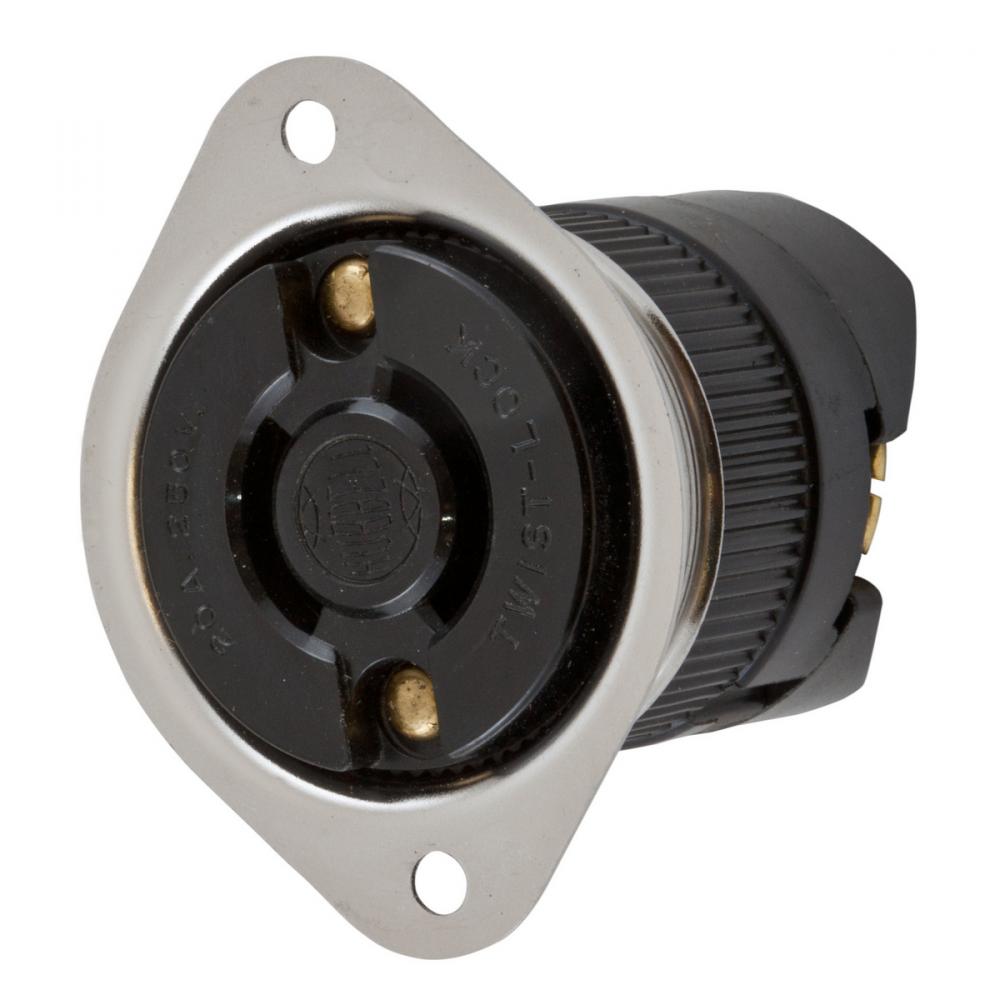

LKG FLG-RCPT, 20A 250V, L2-20R, METALLIC by Hubbell Wiring Device-Kellems
- Part Number: HBL3226
- UPC: 00783585236292
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Stainless steel casing, black phenolic.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Insulgrip
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L2-20R
Number Of Poles:
2-Pole
Number Of Wires:
2-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
2.25 in x 2.25 in x 1.83 in
Spec Sheet:
Special Features:
Standard
Standard:
Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
5,000
Weight:
.200 L
Wire Size:
#16 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
