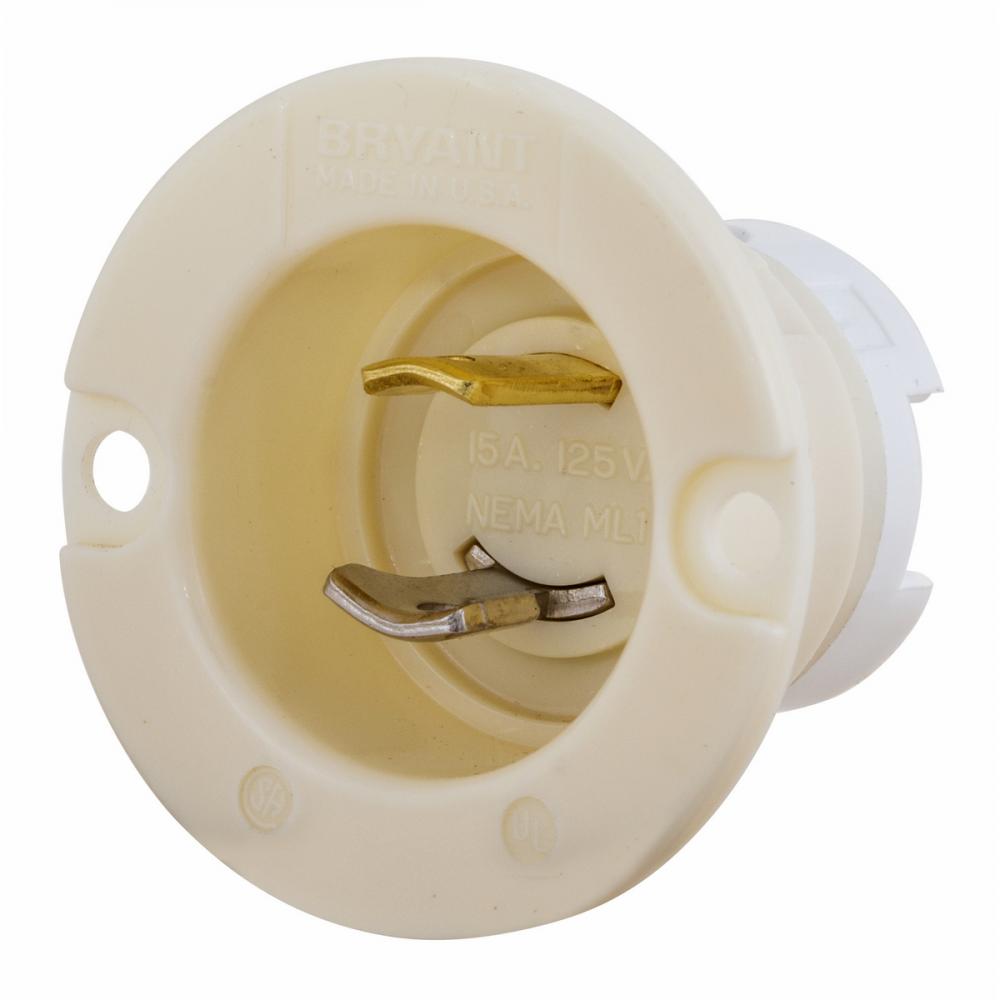

LKG FLG-INLT, MIDGET, 15A 125V, ML-1P by Hubbell Wiring Device-Kellems
- Part Number: 7466N
- UPC: 00781786638518
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet,15A 125V, 2-Pole 2-Wire Non Grounding, ML-1P, Screw Terminal, Black
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Material:
Composite
Mounting:
Screw Mount
NEMA Rating:
ML-1P
Number Of Poles:
2-Pole
Number Of Wires:
2-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
RoHS Compliance:
Yes
Size:
1.63 in x 1.38 in x 1.28 in
Spec Sheet:
Special Features:
Standard Product
Standard:
NEMA WD1 and WD5, UL498
Stock Type:
Shelf Stock
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125
Wattage:
1,875
Weight:
.050 L
Wire Size:
#18 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
