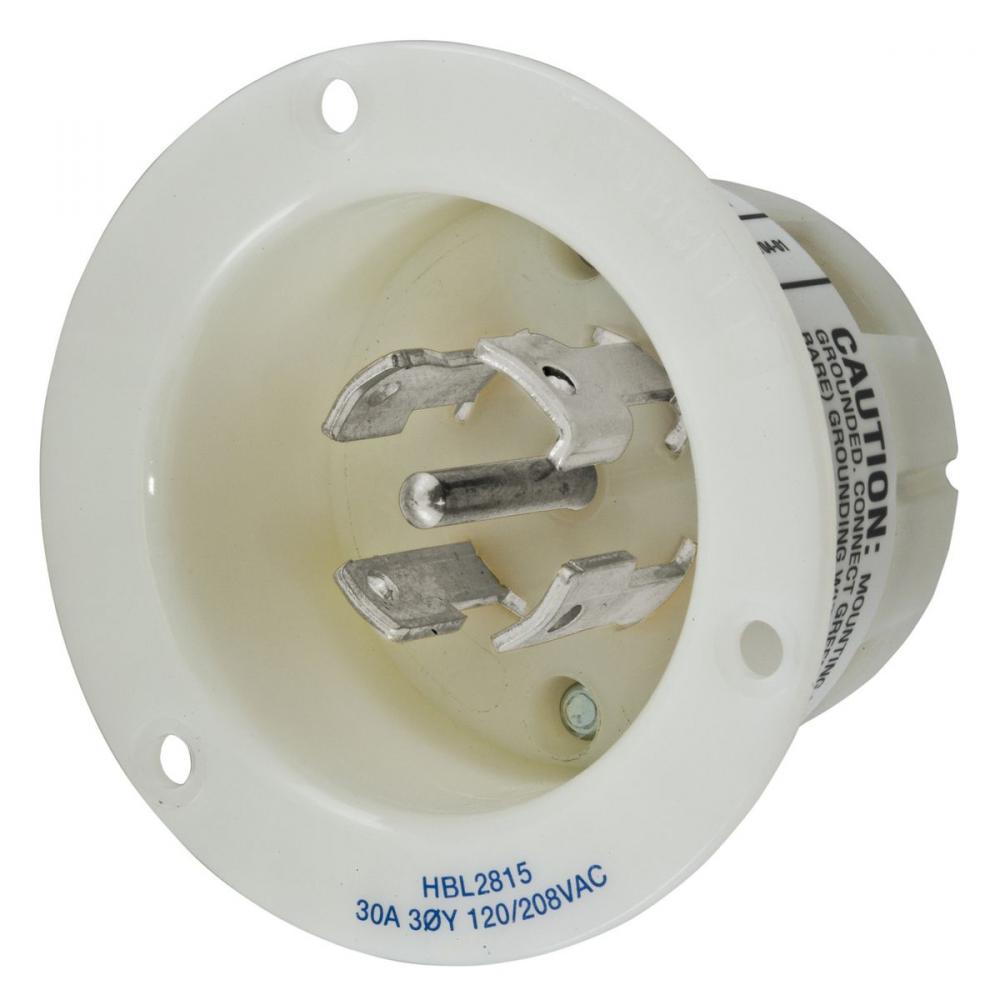

LKG FLG-INLT, 30A 120/208V,L21-30P,WH,CM by Hubbell Wiring Device-Kellems
- Part Number: HBL28CM15
- UPC: 00783585358475
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®?«, Marine Grade, Flanged Inlet, 30A, 3- e Wye120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, W hite.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L21-30P
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Special Features:
Corrosion Resistant
Standard:
NEMA WD1 and WD5, UL498
Sub Brand:
Twist-Lock Devices
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
3-Phase 120/208V AC kV
Wattage:
6,240
Weight:
.300 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
