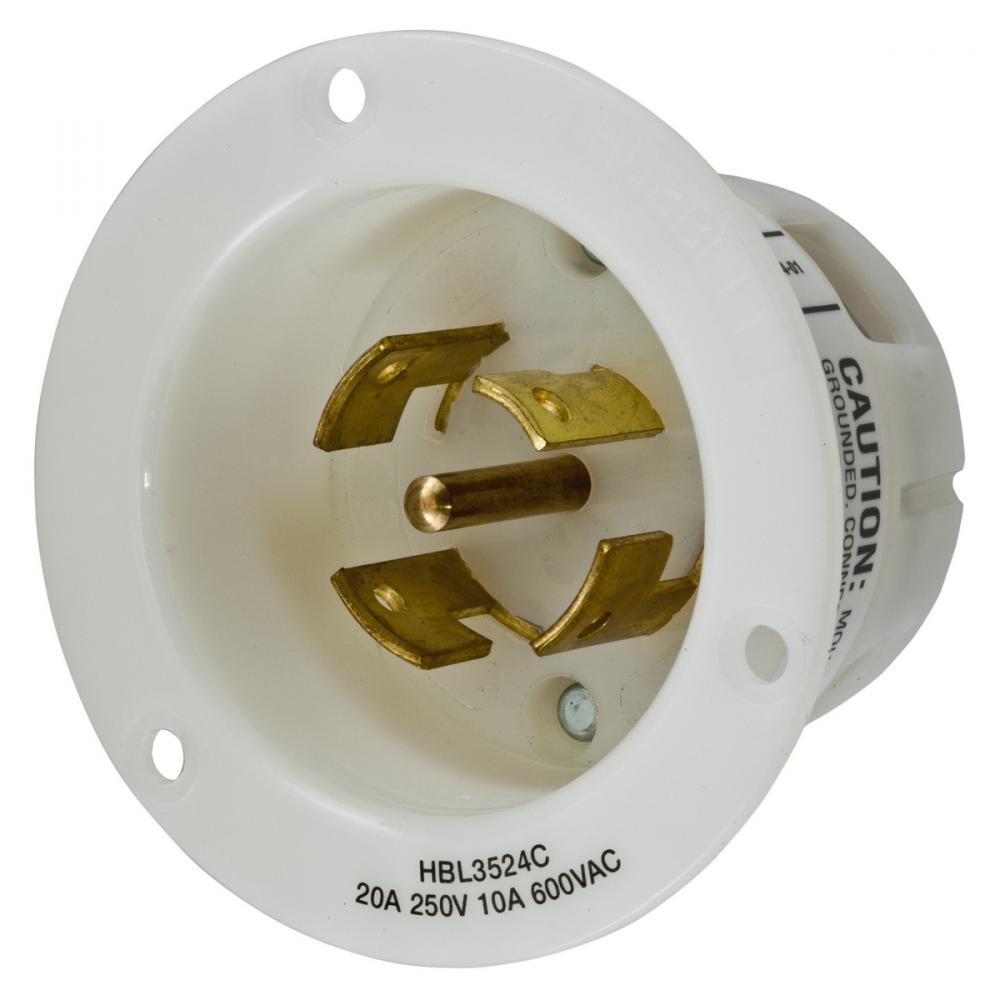

LKG FLG-INLT, 20A 250V/10A 600V, 4P5W by Hubbell Wiring Device-Kellems
- Part Number: HBL3524C
- UPC: 00783585039930
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 250V/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20/10
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
3.06 in x 3.06 in x 2.23 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
250/600
Warranty Link:
Wattage:
12,000
Weight:
.300 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
