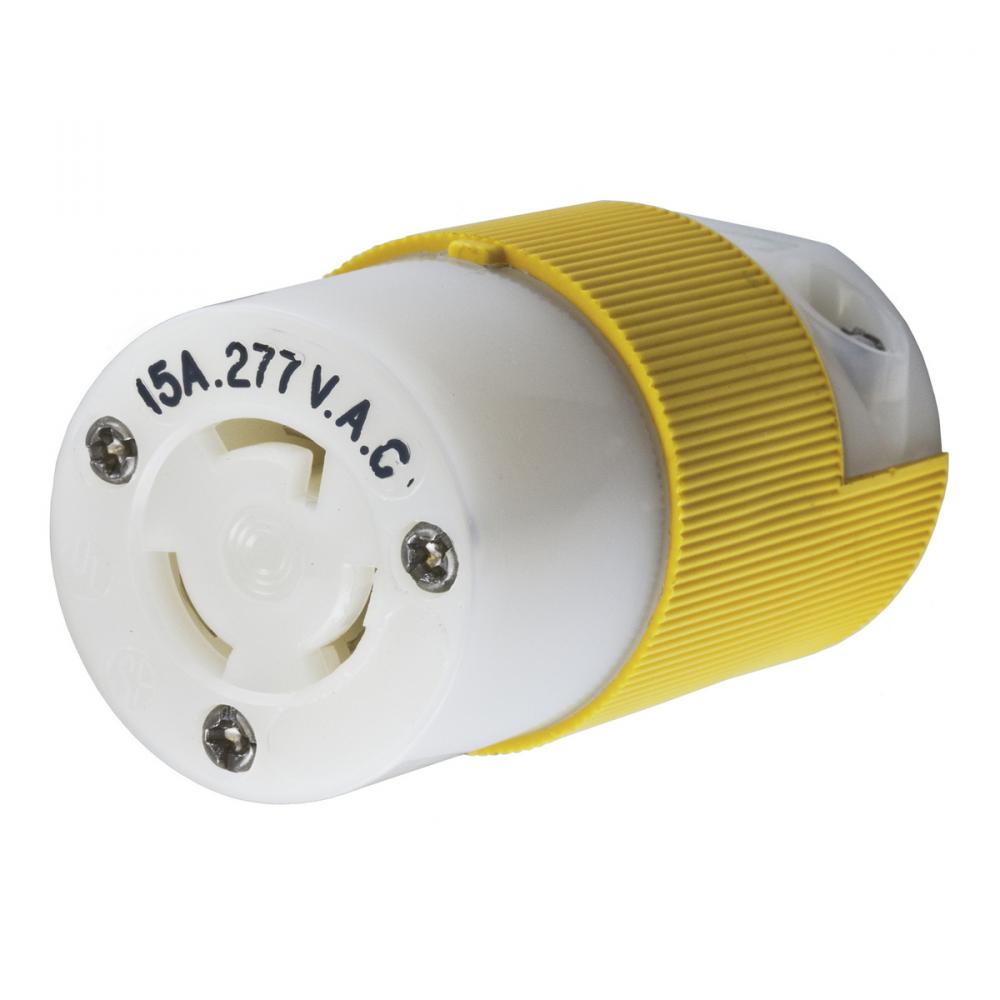

LKG CONN, CM, 15A 277V L7-15R

LKG CONN, CM, 15A 277V L7-15R by Hubbell Wiring Device-Kellems

  • Part Number: HBL47CM79C
  • UPC: 00783585161204
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Yellow and White Nylon.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #12AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Installation Instructions
Insulation:
Insulated Body
Line Drawing Link:
Line Drawing
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L7-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
1.53 in x 1.53 in x 2.78 in
Spec Sheet:
Spec Link
Special Features:
Corrosion Resistant
Standard:
Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
Sub Brand:
Twist-Lock
Tech Drawing Link:
Tech Drawing
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Warranty Information
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
