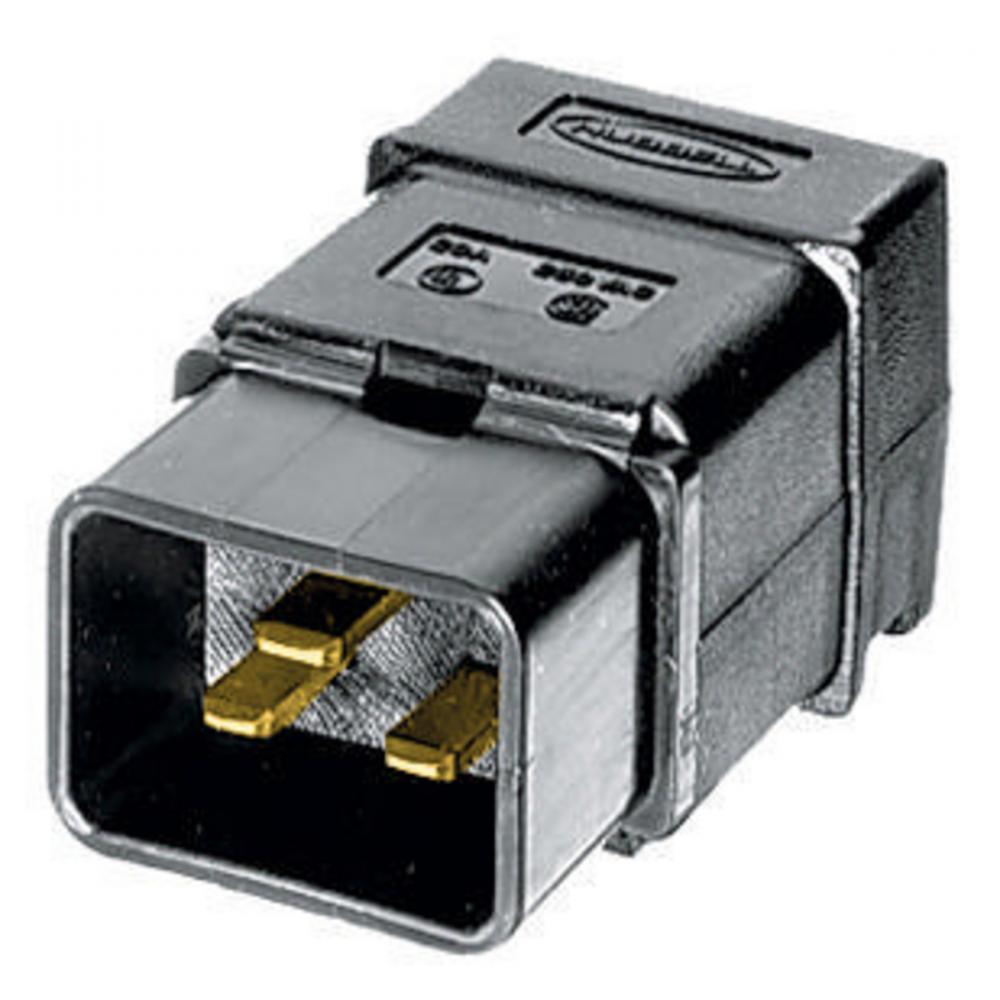

IEC320 MALE PLUG, 20/16A 250V by Hubbell Wiring Device-Kellems
- Part Number: H320P
- UPC: 00783585777061
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, IEC 320 Devices, Male Plug, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
20/16
Application:
International
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Cord Type:
All Portable
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
Size:
2.75 in x 1.52 in x 1.36 in
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA certified 20A 250V AC-File No. 17337;UL Listed 20A 250V AC-File No. E1706
Sub Brand:
Straight Blade Devices
Type:
Male Plug
UNSPSC:
39121402
Voltage Rating:
250
Warranty Link:
Wattage:
7,500
Weight:
.045 L
Wire Size:
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
Manufactured By:
Hubbell Wiring Device-Kellems
