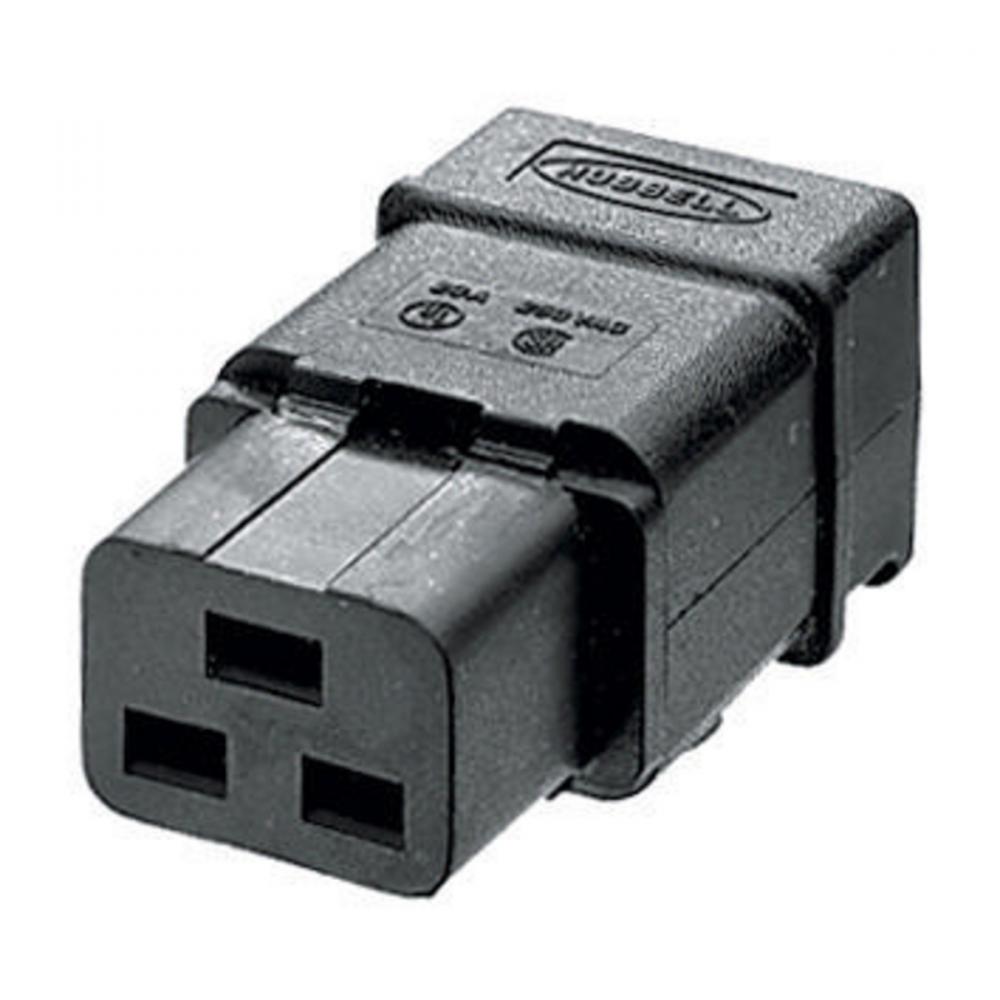

IEC320 FEMALE CONN, 20/16A 250V by Hubbell Wiring Device-Kellems
- Part Number: H320C
- UPC: 00783585777108
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, IEC 320 Devices, Female Connector, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20/16
Application:
Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#14 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.74 in x 1.42 in x 1.36 in
Spec Sheet:
Special Features:
Appliance Coupler
Standard:
CSA certified 20A 250V AC-File No. 17337;UL classified to IEC 320, 16A 250V AC-File No. E111246;UL Listed 20A 250V AC-File No. E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Valise
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.045 L
Manufactured By:
Hubbell Wiring Device-Kellems
