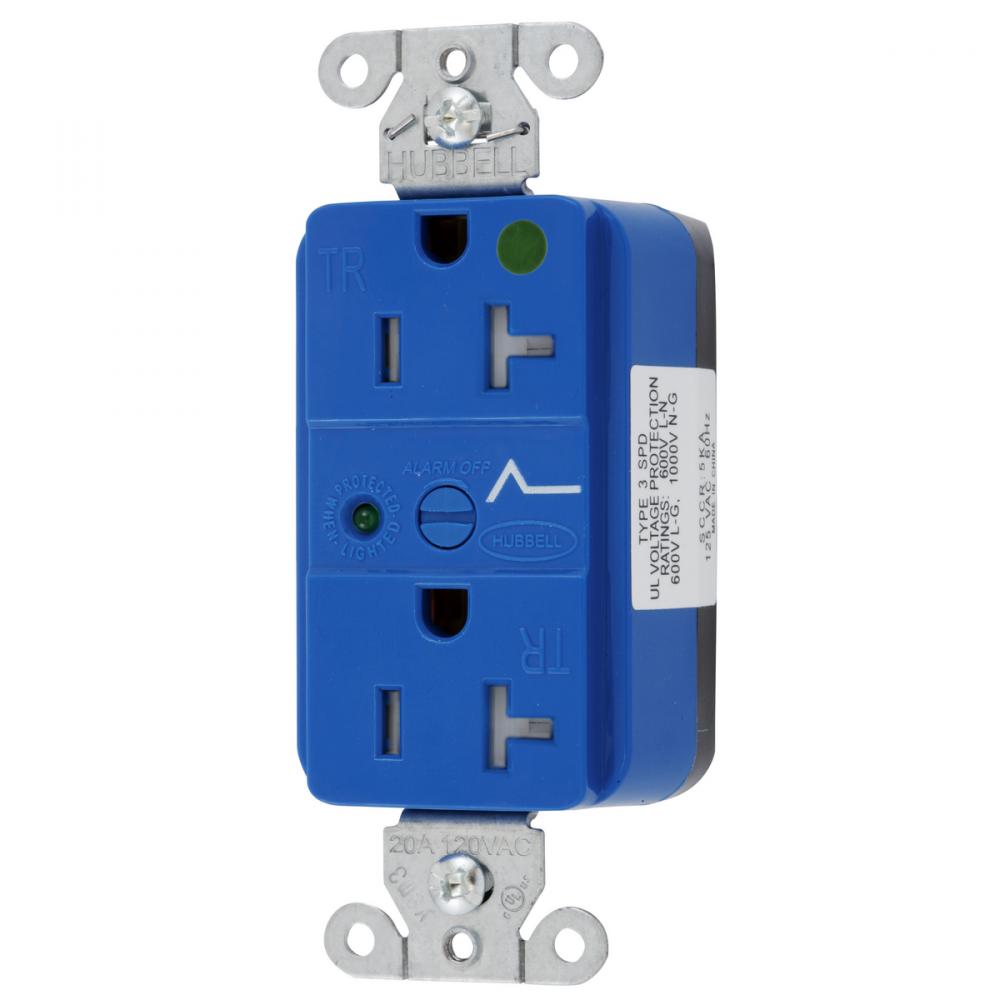

HG SNAP SPD RCPT, 20A 125V, TR, BLUE by Hubbell Wiring Device-Kellems
- Part Number: SNAP8362S
- UPC: 00783585252179
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, SNAP-Connect, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Nylon, Blue
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Blue
Connection:
Connectorized
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.31 in x 1.75 in x 1.52 in
Spec Sheet:
Special Features:
Quick Connect- SNAPConnect, Surge Supression, Tamper Resistant
Standard:
CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
Sub Brand:
Straight Blade Devices
Type:
Surge Protection Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.250 L
Wire Size:
#12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
