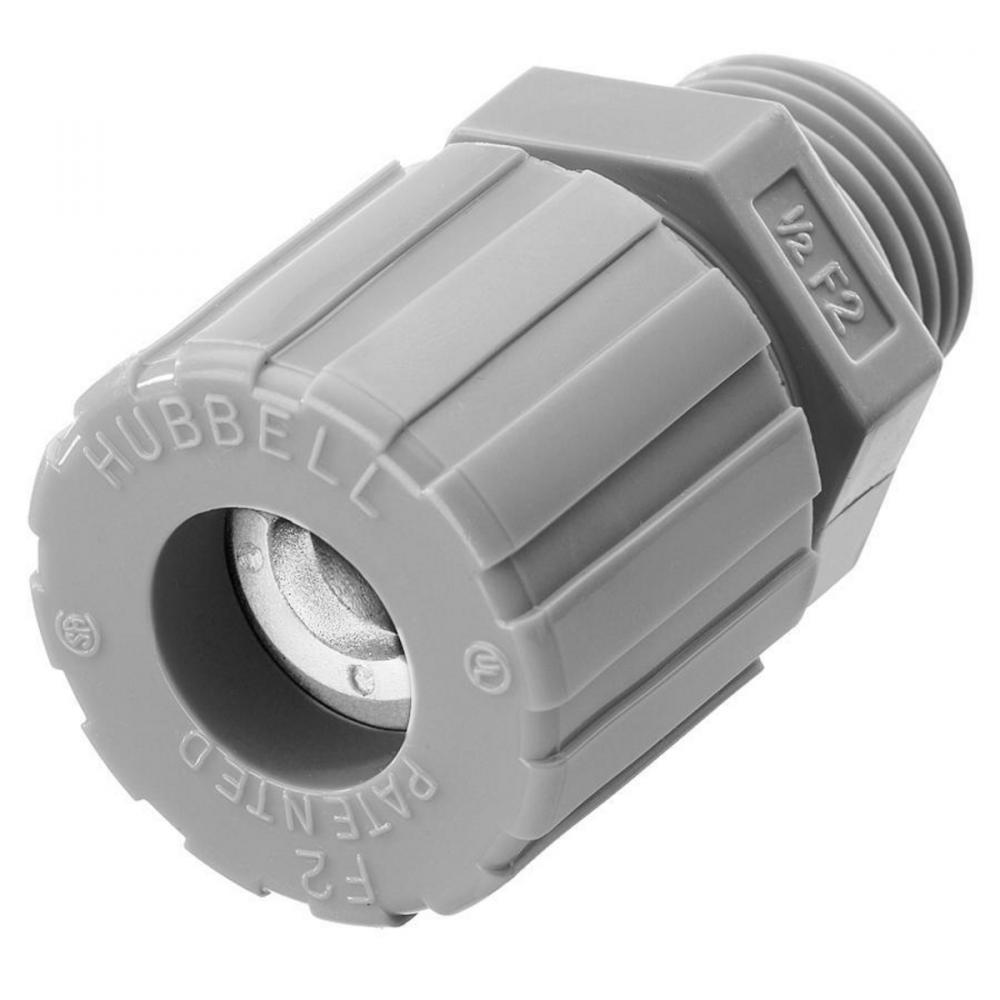

HBL SHC1022CR by Hubbell Wiring Device-Kellems
- Part Number: SHC1022CR
- UPC: 00783585208046
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK SHC1022CR CORD CONN, STR ML, .
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Straight Male- Form 2
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Conductor Range:
0.25- 0.38 in (6.3- 9.7 mm)
Country Of Origin:
CN
Environmental Conditions:
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Finish:
Smooth
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Locknut or Tapped Opening
NEMA Rating:
NEMA Type 4, 4X, 12 and 13
Number Of Conductors:
Single
Size:
1/2" NPT
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Kellems Wire Management
Tech Drawing Link:
Temperature Rating:
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Type:
Straight Male
UNSPSC:
39121431
Warranty Link:
Weight:
.022 L
Manufactured By:
Hubbell Wiring Device-Kellems
