HBL S1SFBAV by Hubbell Wiring Device-Kellems
- Part Number: S1SFBAV
- UPC: 00783585371665
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

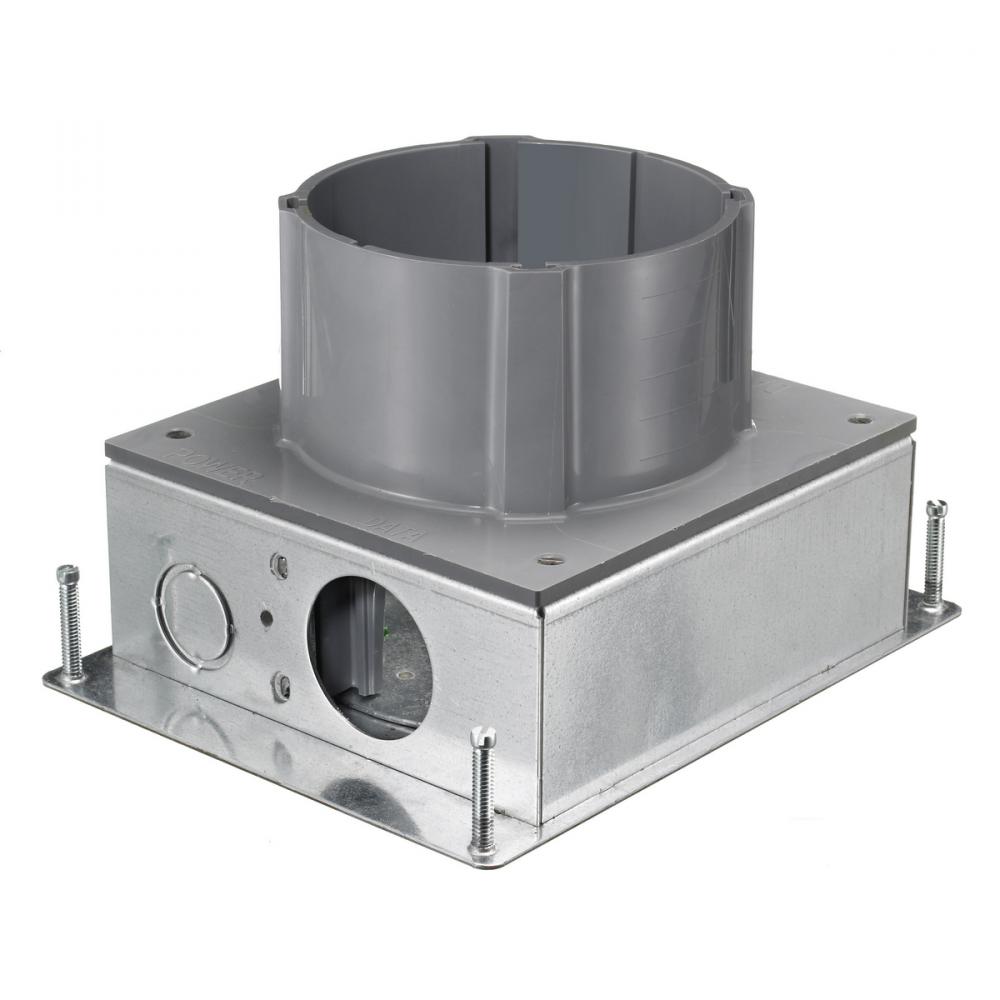

HWDK S1SFBAV FBOX, SYSTEM ONE, A/V,
Specifications
Details
Electrical Category:
Electrical Boxes And Enclosures
Electrical Subcategory:
Utility Boxes
Application:
For Use in Concrete Floors
Brand Name:
WIRING DEVICE-KELLEMS
Cable Entry:
From Top
Color:
Gray
Construction:
Stamped
Country Of Origin:
US
Cubic Capacity:
177.50 Cubic Inches
Height:
3
Installation Link:
Knockouts:
1) 3/4 in and 1 in Concentric, 1) 1 1/2 in NPT Hub
Length:
7.5
Line Drawing Link:
Material:
Composite
Mounting:
Cast Into Concrete
Size:
7.5 in x 9.5 in x 3 in
Spec Sheet:
Special Features:
Preglavanized Galvanized Stamped Steel Box with PVC Riser; Concentric Knock-Outs
Standard:
cULus;UL514
Sub Brand:
Flush Concrete Floor Boxes
Tech Drawing Link:
Type:
Round Box
UNSPSC:
39121307
Warranty Link:
Weight:
6.450 L
Width:
9.5
Manufactured By:
Hubbell Wiring Device-Kellems
