HBL HBLS430R7W by Hubbell Wiring Device-Kellems
- Part Number: HBLS430R7W
- UPC: 00783585550480
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview

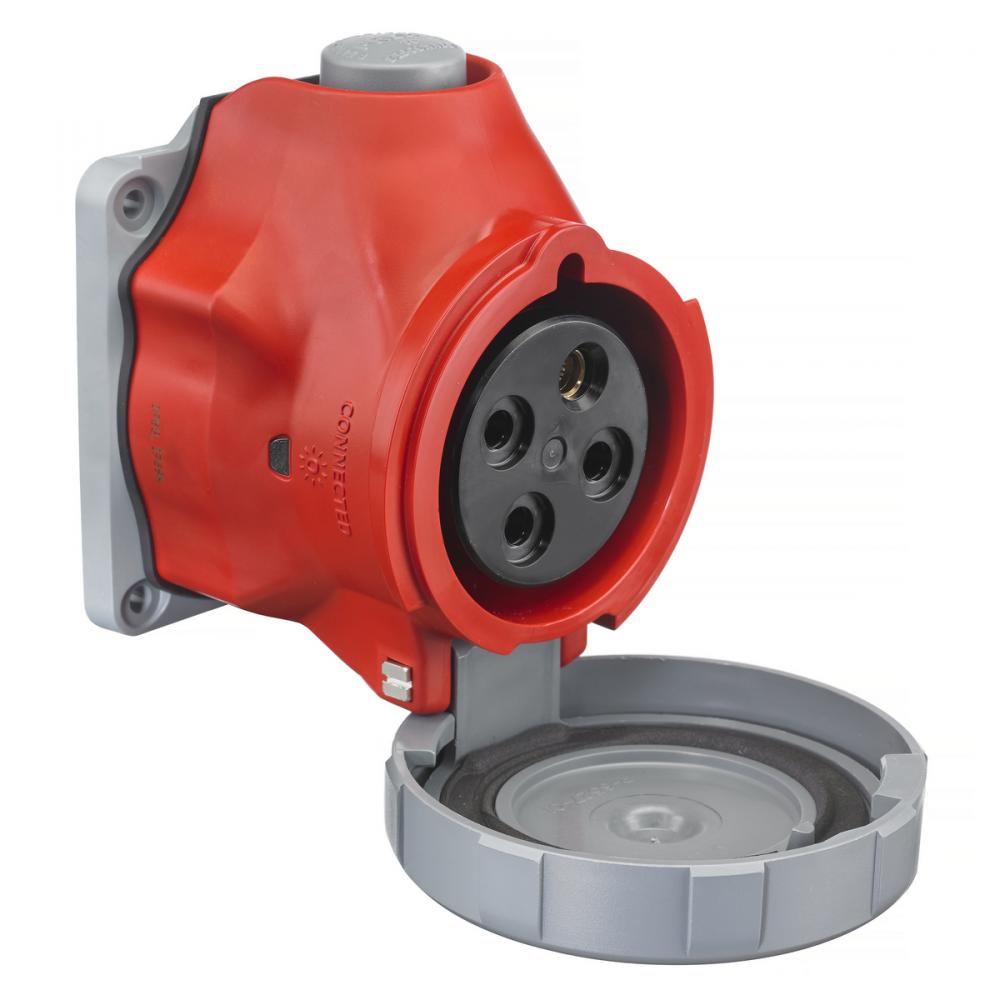

HUBBELL HBLS430R7W PIN AND SLEEVE DEVICES, SWITCHED IEC 309, RECEPTACLE, 30A 480V, 3 POLE 4-WIRE GROUNDING, NEMA 4X/IP67, WATERTIGHT
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Pressure Screw Terminal
Cord Type:
All Portable
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Non-Metallic Housing, Brass Pins
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Three
Size:
Standard Sized
Spec Sheet:
Special Features:
Switched
Standard:
UL498, IEC60309
Sub Brand:
IEC 309 Pin and Sleeve
Tech Drawing Link:
Type:
Watertight Receptacle
UNSPSC:
39121402
Voltage Rating:
3 Phase 480
Warranty Link:
Wattage:
14400
Weight:
1.700 L
Wire Size:
#12AWG-#8AWG
Manufactured By:
Hubbell Wiring Device-Kellems
