HBL HBL4711 by Hubbell Wiring Device-Kellems
- Part Number: HBL4711
- UPC: 00783585236742
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

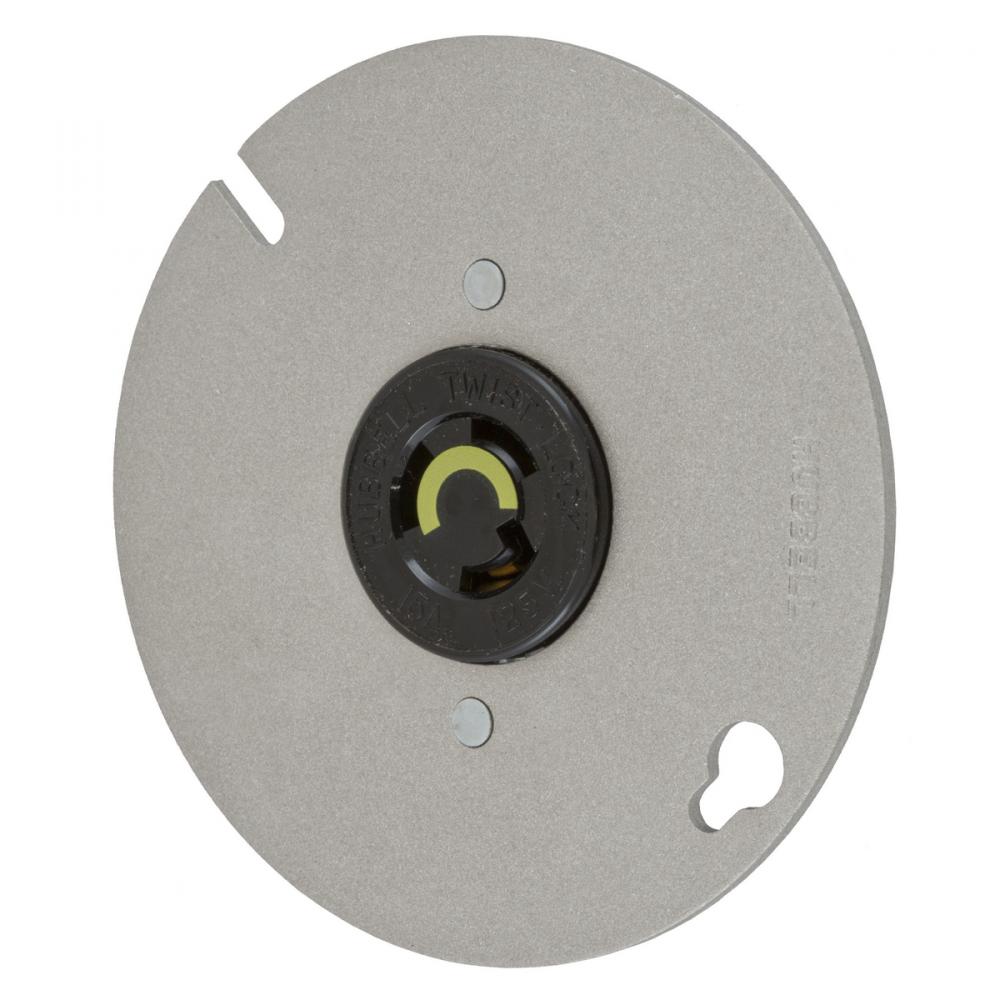

HWDK HBL4711 CAT# HBL4710 ON ROUND
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Phase:
Single Phase
Size:
1.42 in x 1.42 in x 1.27 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Single Mounted to 4" Round Box Cover
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.250 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
