HBL HBL26418 by Hubbell Wiring Device-Kellems
- Part Number: HBL26418
- UPC: 00783585017310
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

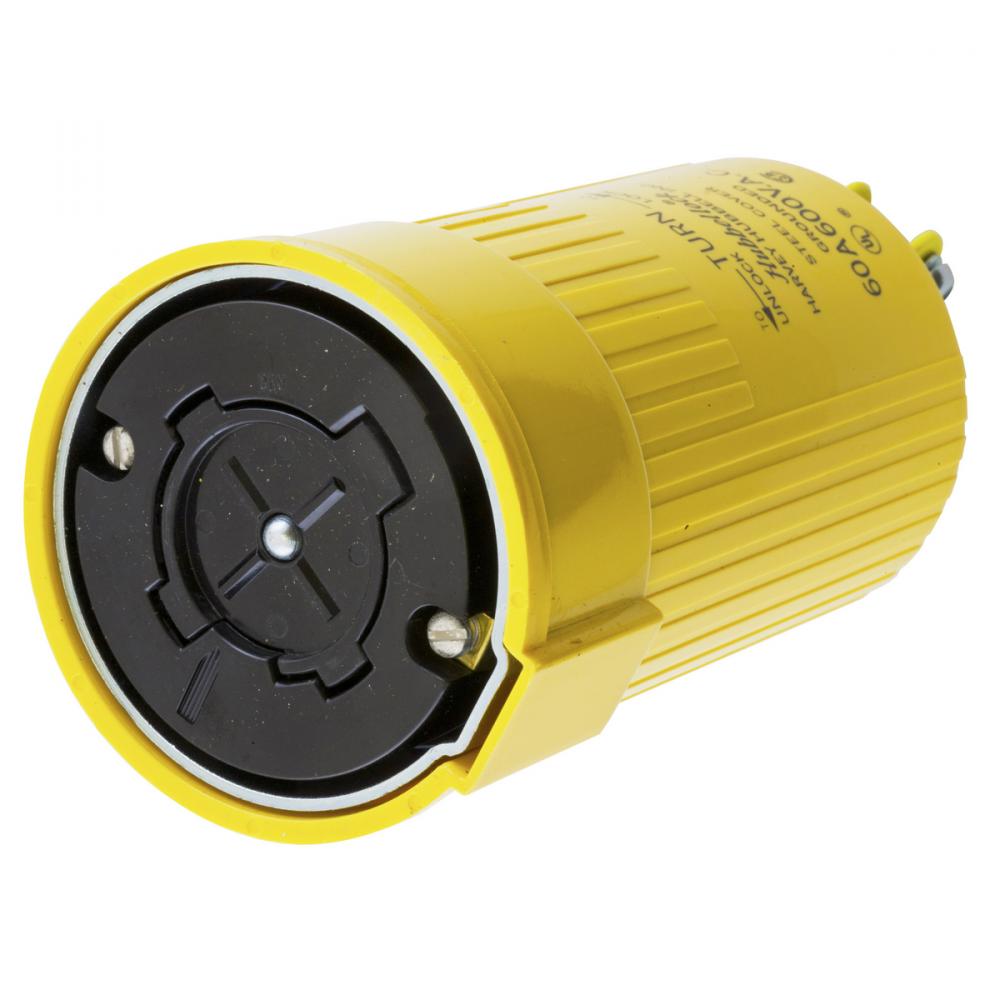

HWDK HBL26418 H/LOCK CONN, 3P4W 60A
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
60
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#6AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Steel
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
4-Wire Grounding
Number Of Poles:
3-Pole
Size:
3.19 in x 1.09 in x 5.44 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No. 42;Listed to UL 498
Sub Brand:
Hubbellock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
600
Warranty Link:
Weight:
.539 L
Manufactured By:
Hubbell Wiring Device-Kellems
