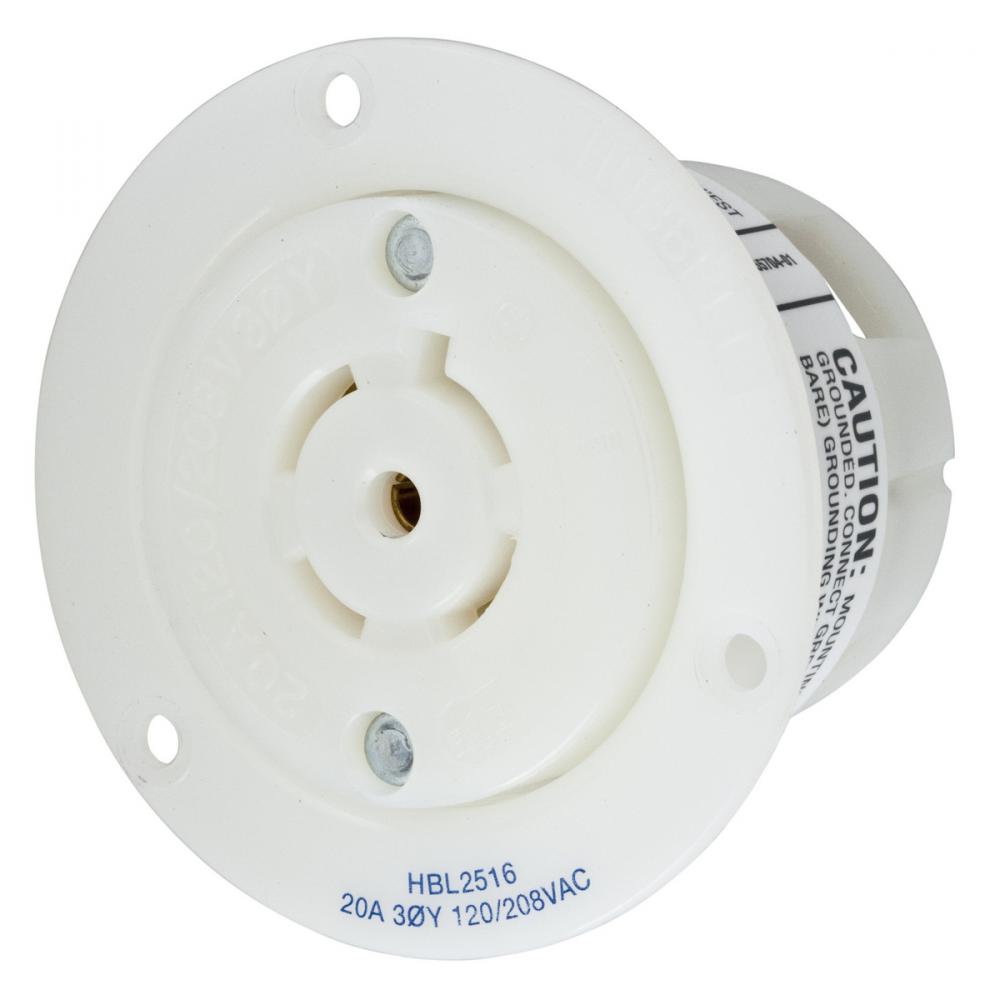

HBL HBL2516 by Hubbell Wiring Device-Kellems
- Part Number: HBL2516
- UPC: 00783585038582
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL2516 LKG FLG-RCPT, 20A 120/
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L21-20R
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Phase:
3 Phase WYE
Size:
3.06 in x 3.06 in x 2.27 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
3 Phase WYE 120/208
Warranty Link:
Wattage:
4,160
Weight:
.350 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
