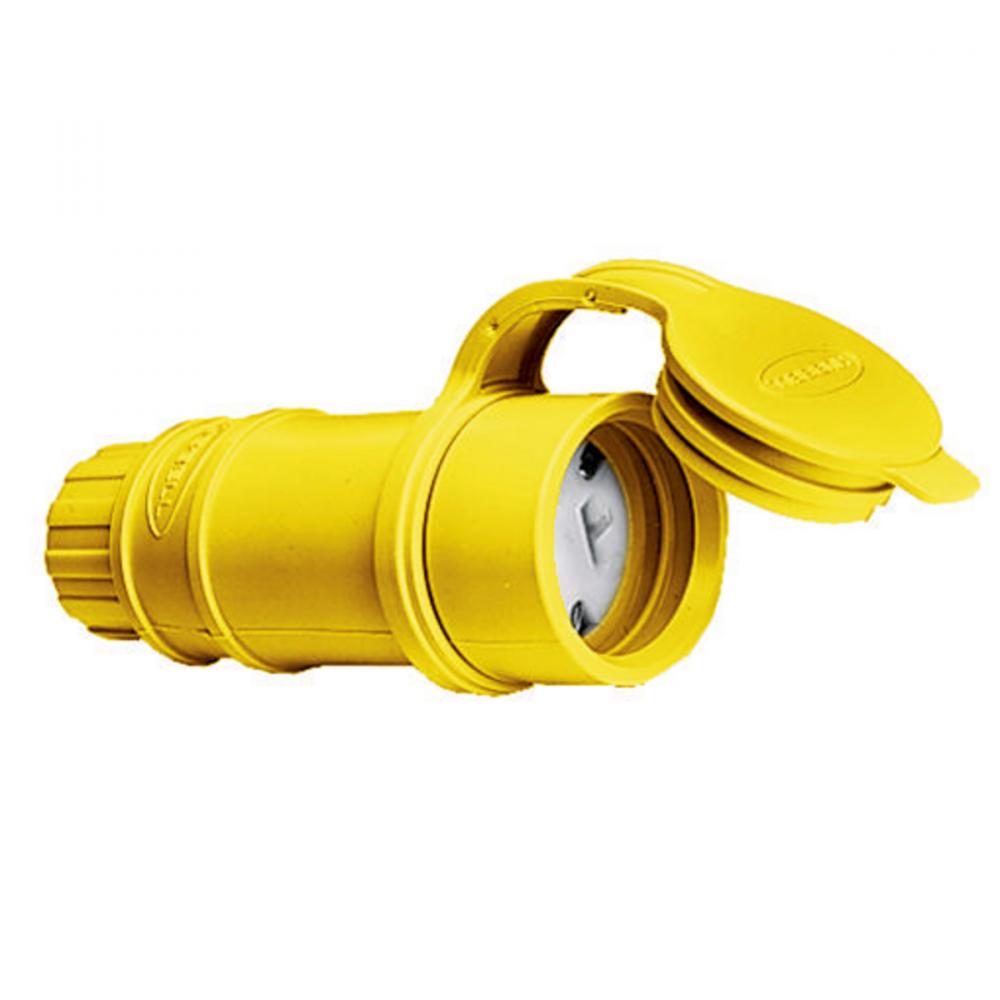

HBL HBL15W33 by Hubbell Wiring Device-Kellems
- Part Number: HBL15W33
- UPC: 00783585013343
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL15W33 ELASTOGRIP W/T CONN,
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#18 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
5-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Size:
3.00 in x 1.61 in x 3.00 in
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.184 L
Manufactured By:
Hubbell Wiring Device-Kellems
