HBL CS8275 by Hubbell Wiring Device-Kellems
- Part Number: CS8275
- UPC: 00783585829005
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

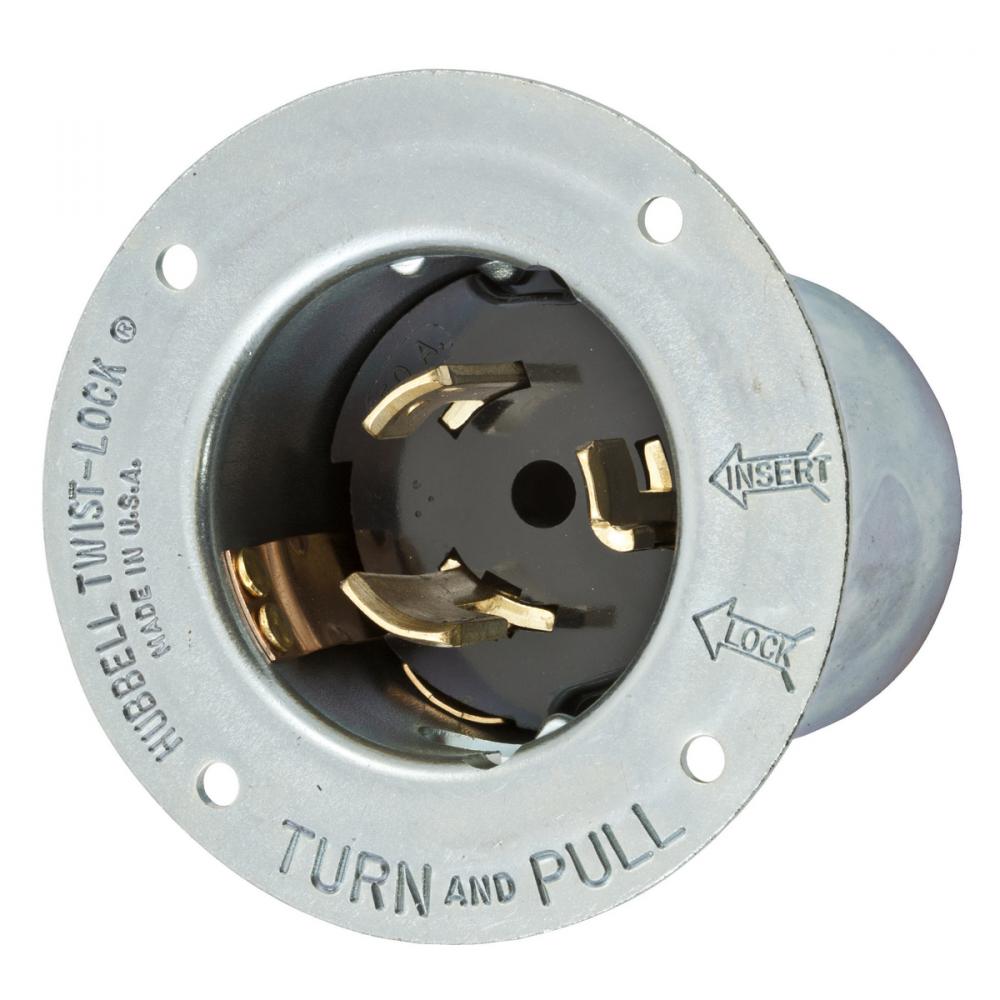

HWDK CS8275 LOCKING INLT, 50A 250V,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Steel, Zinc Plated
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.50 in x 2.62 in x 2.17 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
50A Twist-Lock
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
12,500
Weight:
.850 L
Wire Size:
#10 AWG to #6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
