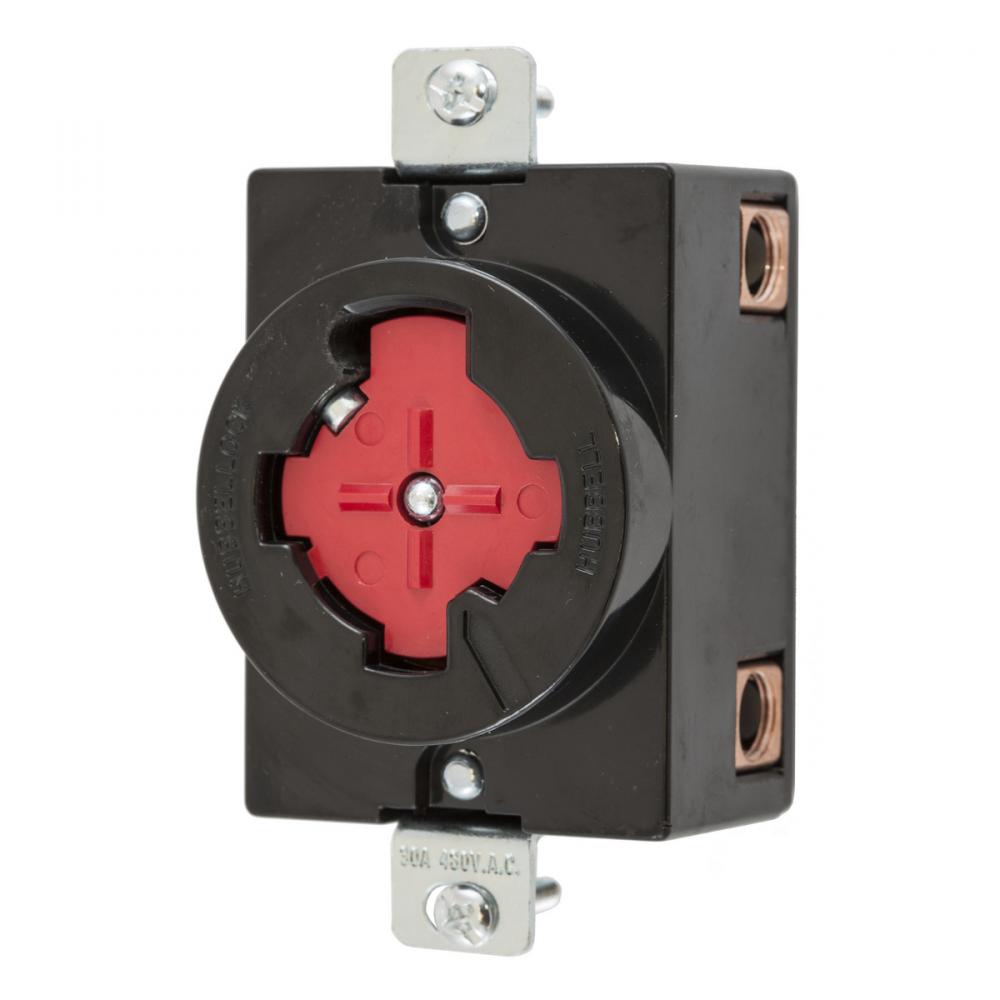

H/LOCK RCPT, 30A 480V, 3P4W by Hubbell Wiring Device-Kellems
- Part Number: HBL20443
- UPC: 00783585017419
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Hubbellock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Red.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red and Black
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Multi-Phase
Size:
3.28 in x 1.94 in x 1.75 in
Spec Sheet:
Special Features:
Auto Ejects Improperly Made Connection
Standard:
UL 498
Sub Brand:
Hubbellock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
480
Warranty Link:
Wattage:
14,400
Weight:
.114 L
Wire Size:
#10 AWG to #6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
