H/LOCK INLET FS/FD MTG, 3P4W, 30A 600V by Hubbell Wiring Device-Kellems
- Part Number: HBL22CM428
- UPC: 00783585017532
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

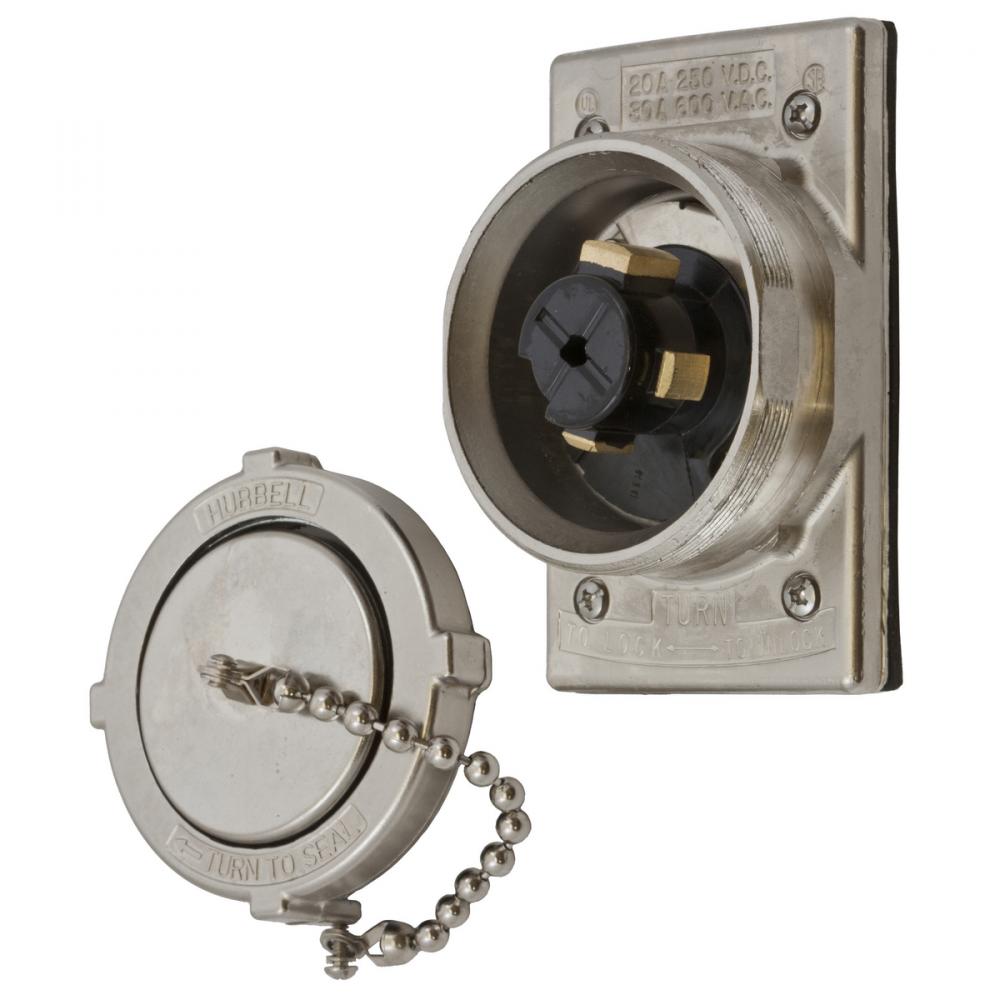

Locking Devices, Hubbellock®, Industrial, Flanged Inlet, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Weathertight, corrosion resistant, nickel plated brass plate, Non-NEMA, Screw Terminal, FS/FD Box Mounting, Metallic
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20/30
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Brass, Nickel Plated
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Multi
Size:
4.56 in x 3.5 in x 2.47 in
Spec Sheet:
Special Features:
FS/FD Mounting
Standard:
Certified to CSA Standard;Listed to UL Standard
Sub Brand:
Hubbellock Devices
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
250 VDC/600
Warranty Link:
Wattage:
18,000
Weight:
1.950 L
Wire Size:
#10 AWG to #6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
