H/LOCK FLGD RCPT, 3P4W, 60A 600V by Hubbell Wiring Device-Kellems
- Part Number: HBL26421
- UPC: 00783585017600
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

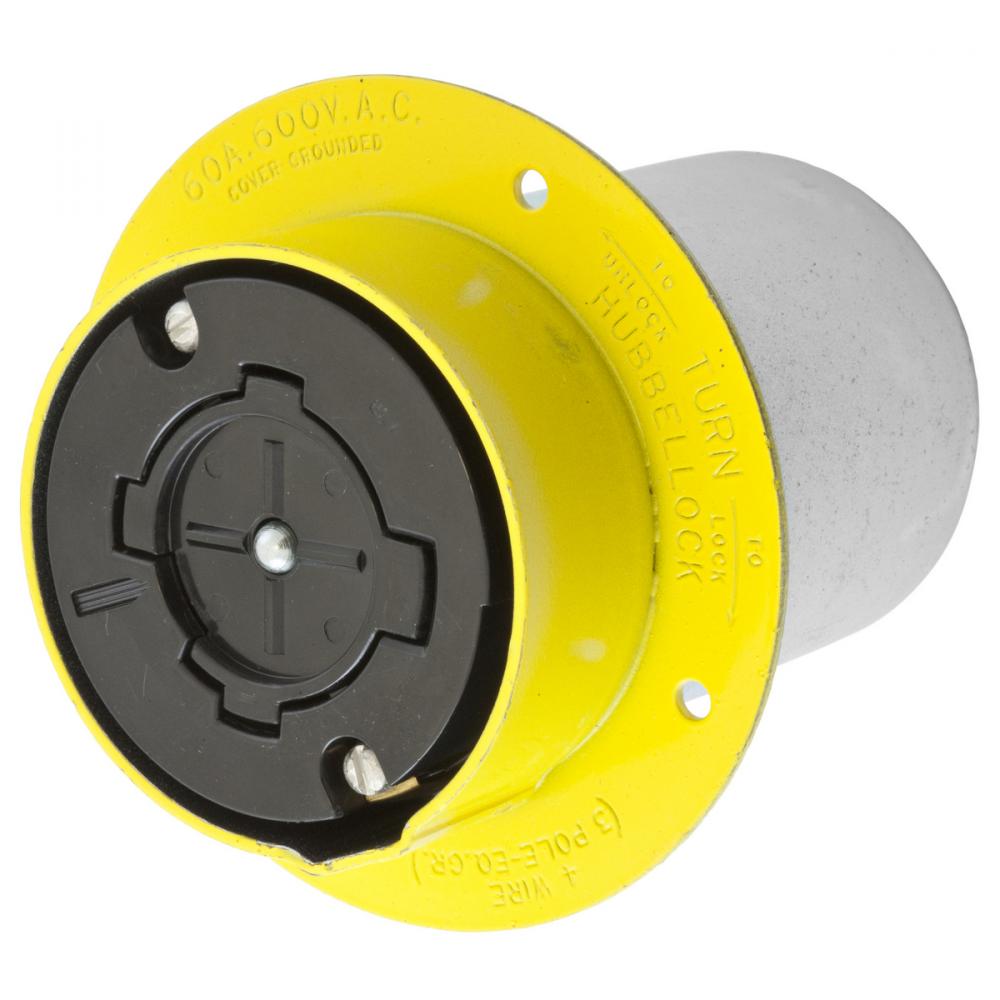

Hubbellock® Industrial Flanged Receptacle, 60A 600V, 3-Pole 4-Wire Grounding phenolic interior with Steel housing and flange, Non NEMA, Screw Terminal
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
60
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Steel, Zinc Plated
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Multi Phase
Size:
4.12 in x 2.88 in x 4.53 in
Spec Sheet:
Special Features:
Auto Ejects Improperly Made Connection
Standard:
Certified to CSA Standard;Listed to UL Standard
Sub Brand:
Hubbellock Devices
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
600
Warranty Link:
Wattage:
36,000
Weight:
2.050 L
Wire Size:
#8 AWG to #4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
