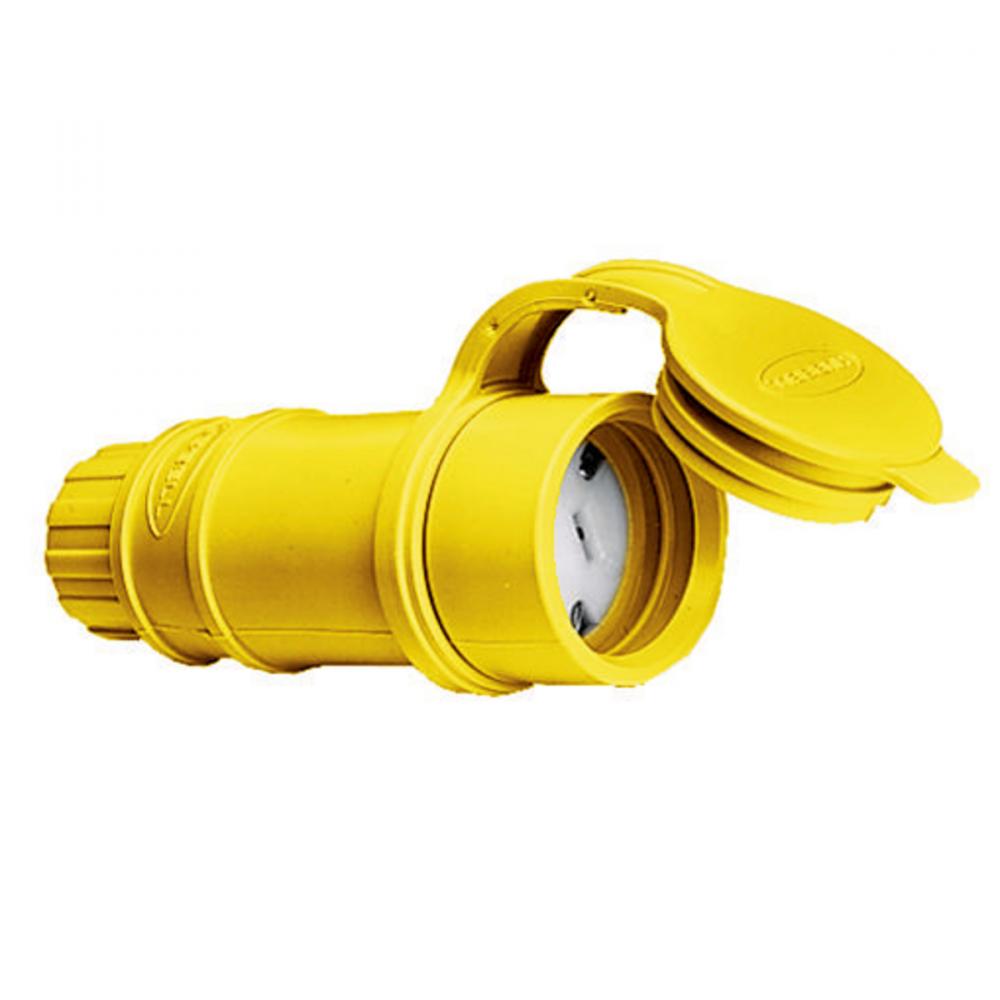

ELASTOGRIP W/T CONN, 15A 125V, 5-15R by Hubbell Wiring Device-Kellems
- Part Number: HBL15W47
- UPC: 00783585013022
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#18 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
5-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.03 in x 1.76 in x 4.03 in
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.192 L
Manufactured By:
Hubbell Wiring Device-Kellems
