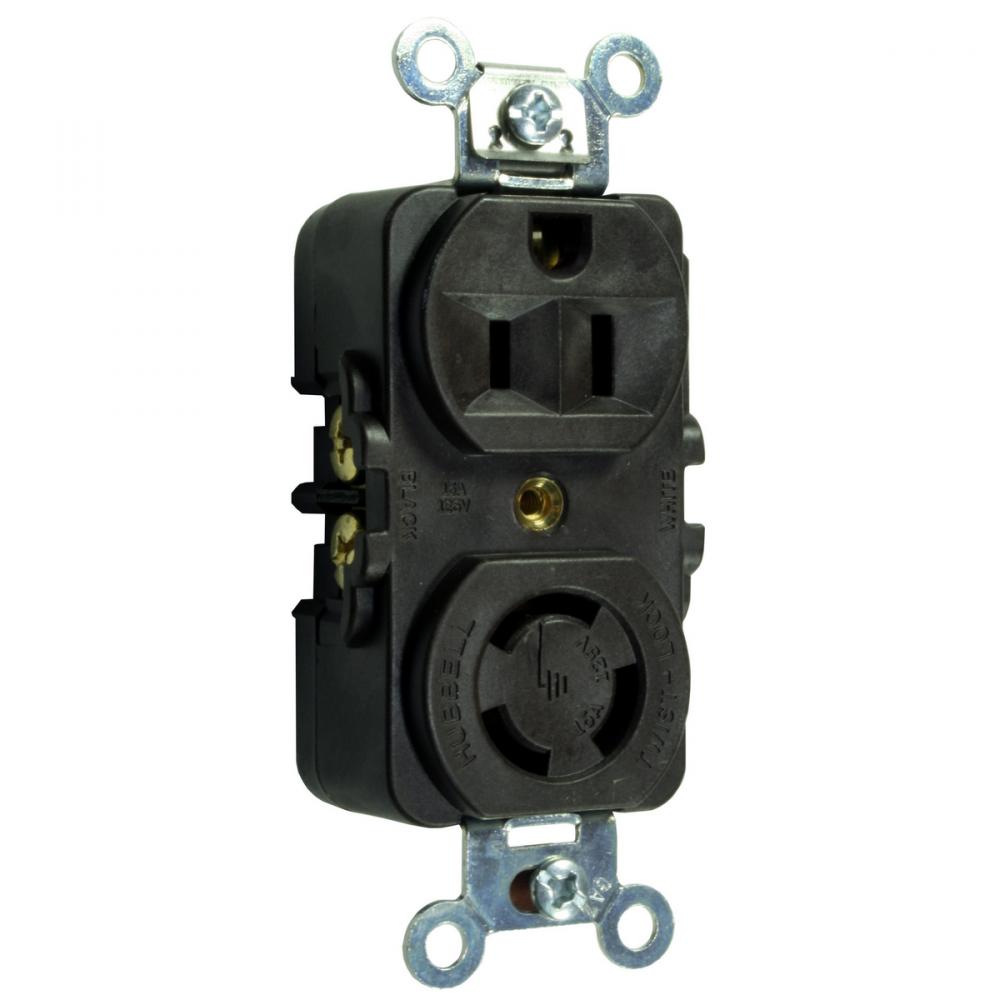

DUP RCPT,COMB 5-15RNON-NEMA LKG,BR by Hubbell Wiring Device-Kellems
- Part Number: HBL7371
- UPC: 00783585237152
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Combination Face Duplex Receptacle, 15A 125V/10A 250V,15A 125 V, 2-Pole 3-Wire Grounding, 5-15R and Non NEMA, Screw Terminal, Brown, 2) Feeds 1) Return
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Brown
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.5 in x 0.88 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Combination Duplex Receptacles
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
1,875
Weight:
.250 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
