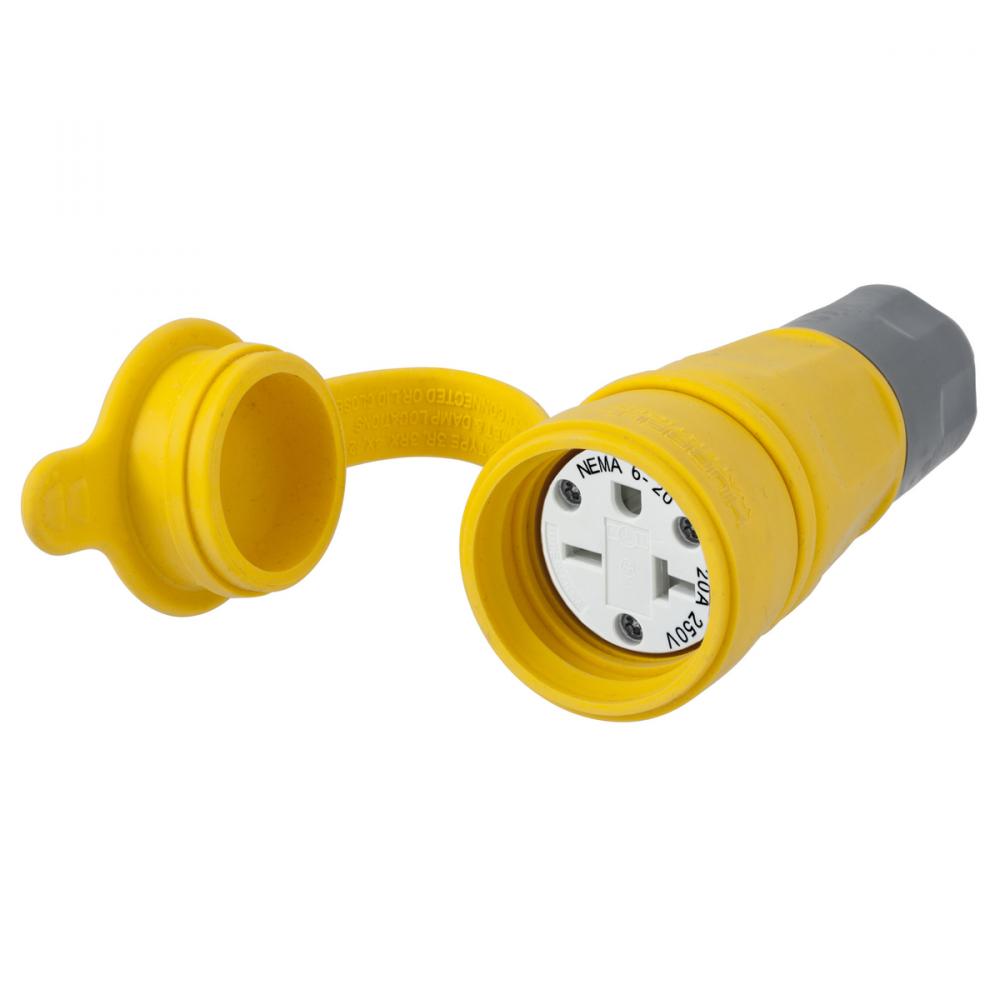

CONN, W/TIGHT, 6-20R, 20A, 250V by Hubbell Wiring Device-Kellems
- Part Number: HBL15W48
- UPC: 00783585131290
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Female ConnectorBody, Elasto-Grip Watertight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #12AWG
Connection:
Terminal Screws
Country Of Origin:
CN
Environmental Conditions:
Water Tight
Insulation:
Insulated Body
Material:
Elastomer/Composite
Mounting:
Cord Mounted
NEMA Rating:
6-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
UL498
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
