CONN, NEMA L5-20R, 20A 125V, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL27W47BK
- UPC: 00783585131474
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

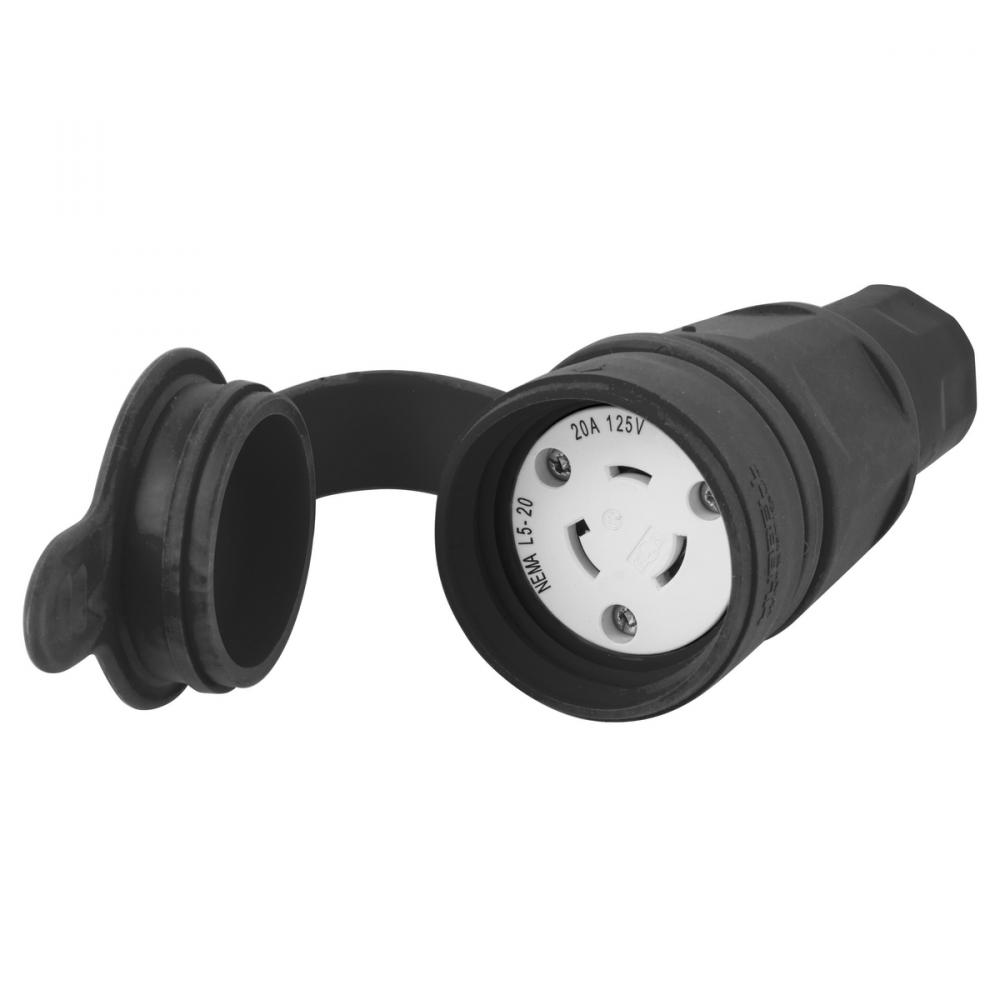

Watertight Twist-Lock® Connector, 20A, 125V, 2-Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-20R
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#18AWG to #10AWG
Connection:
Terminal Screws
Country Of Origin:
US
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
NEMA Rating:
L5-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.51 in x 2.51 in x 5.69 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Watertight Devices
Tech Drawing Link:
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.800 L
Manufactured By:
Hubbell Wiring Device-Kellems
