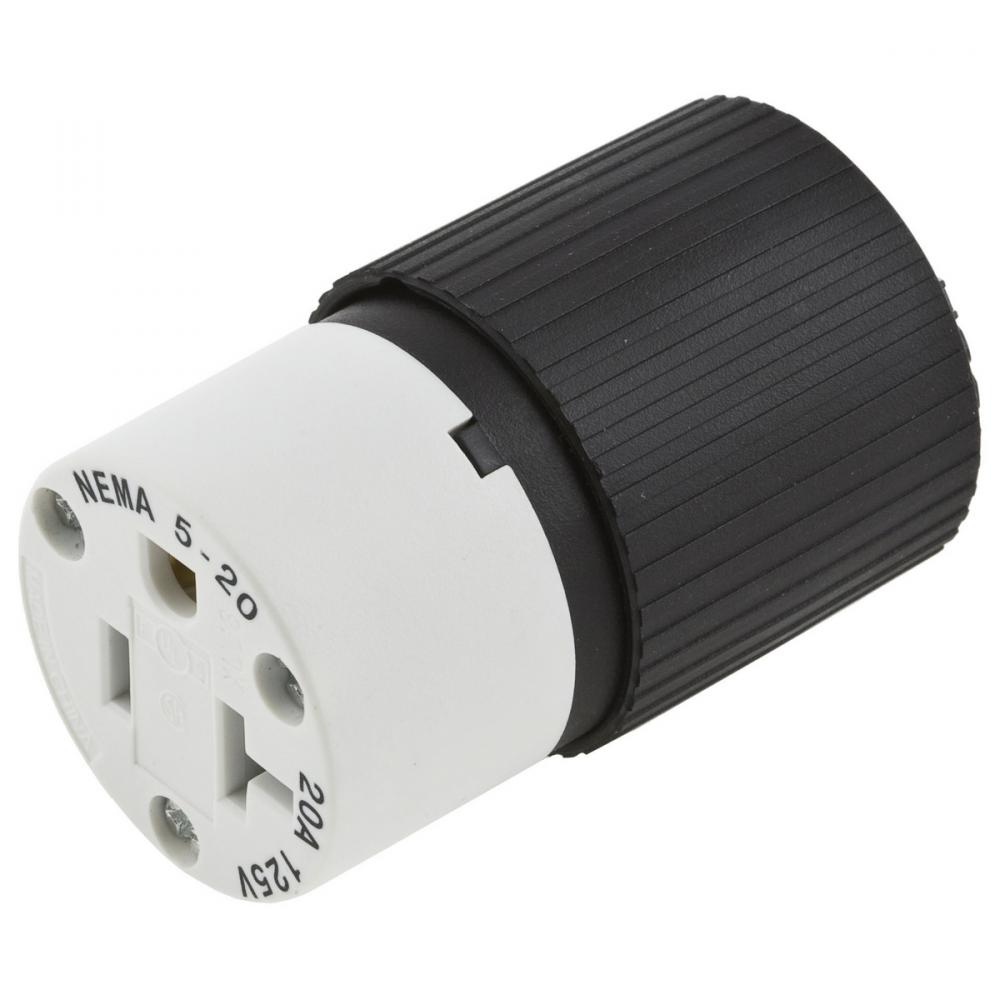

CONN, 20A 125V, SEL SPEC, 5-20R by Hubbell Wiring Device-Kellems
- Part Number: 520SC
- UPC: 00783585331591
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Female Connector Body, Select Spec, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 125V, 20A 5-20R, Yellow, Single Pack
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#14 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
5-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Special Features
Standard:
UL498, CSA
Sub Brand:
Straight Blade
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Select-Spec
UNSPSC:
39121421
Voltage Rating:
125
Weight:
.054 L
Manufactured By:
Hubbell Wiring Device-Kellems
