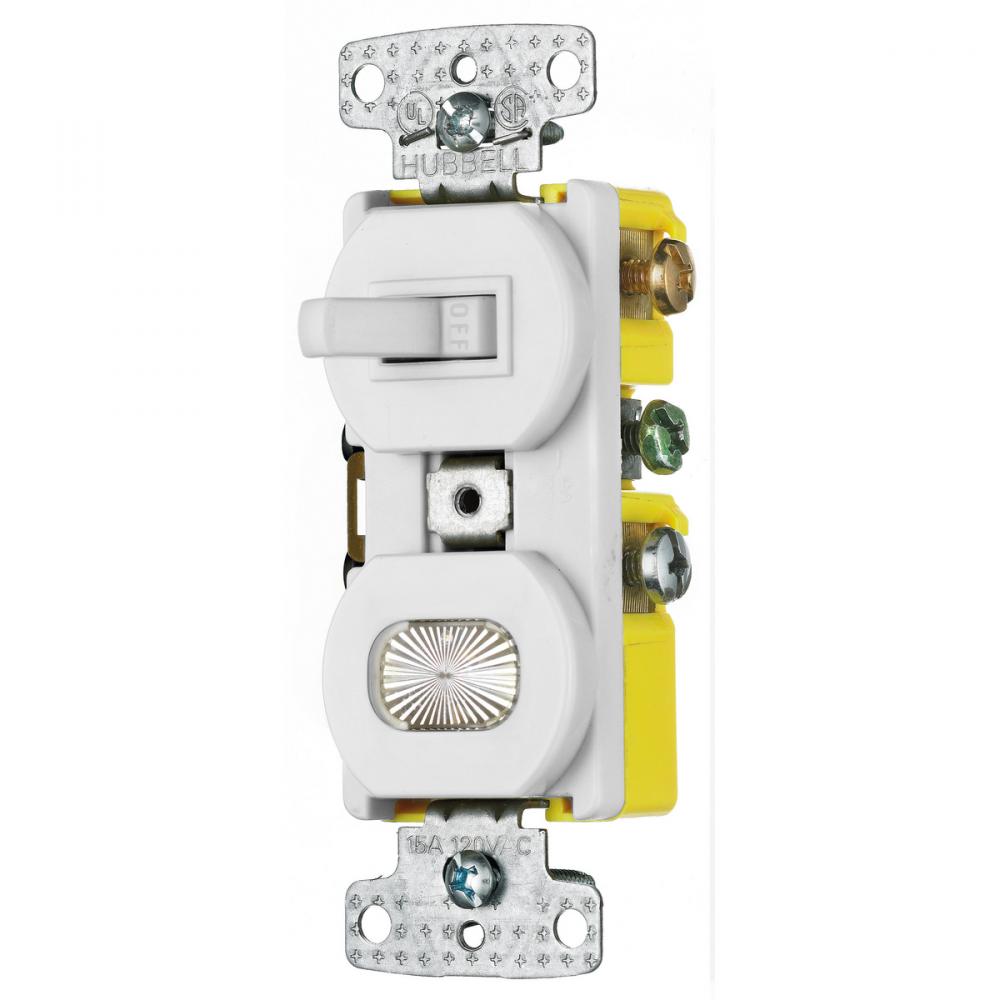

COMBO, 15A SP TOG, PILOT/ILLUM, WH by Hubbell Wiring Device-Kellems
- Part Number: RC109W
- UPC: 00883778110030
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Combination Devices, Residential Grade, 1) Single Pole Toggle, 1) Pilot Light, 15A 120V AC, Self Grounding, Side Wired, White
Specifications
Details
Category:
Lighting Controls
Action:
Snap Switch
Actuator:
Toggle
Amperage Rating:
15
Application:
Residential
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Terminal Screws
Contact Configuration:
Two Position
Contact Rating:
15A
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Mounting:
Mounting Screws
Number Of Poles:
1) Single Pole
Operating Cycles:
30,000 Minimum
Operating Temperature:
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Combo Devices
Tech Drawing Link:
Type:
Switch/Pilot
UNSPSC:
39122226
Voltage Rating:
120
Warranty Link:
Wattage:
1,800
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
