CAT#HBL2623, HI TEMP MOD, GY by Hubbell Wiring Device-Kellems
- Part Number: HBL2623F
- UPC: 00783585038889
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

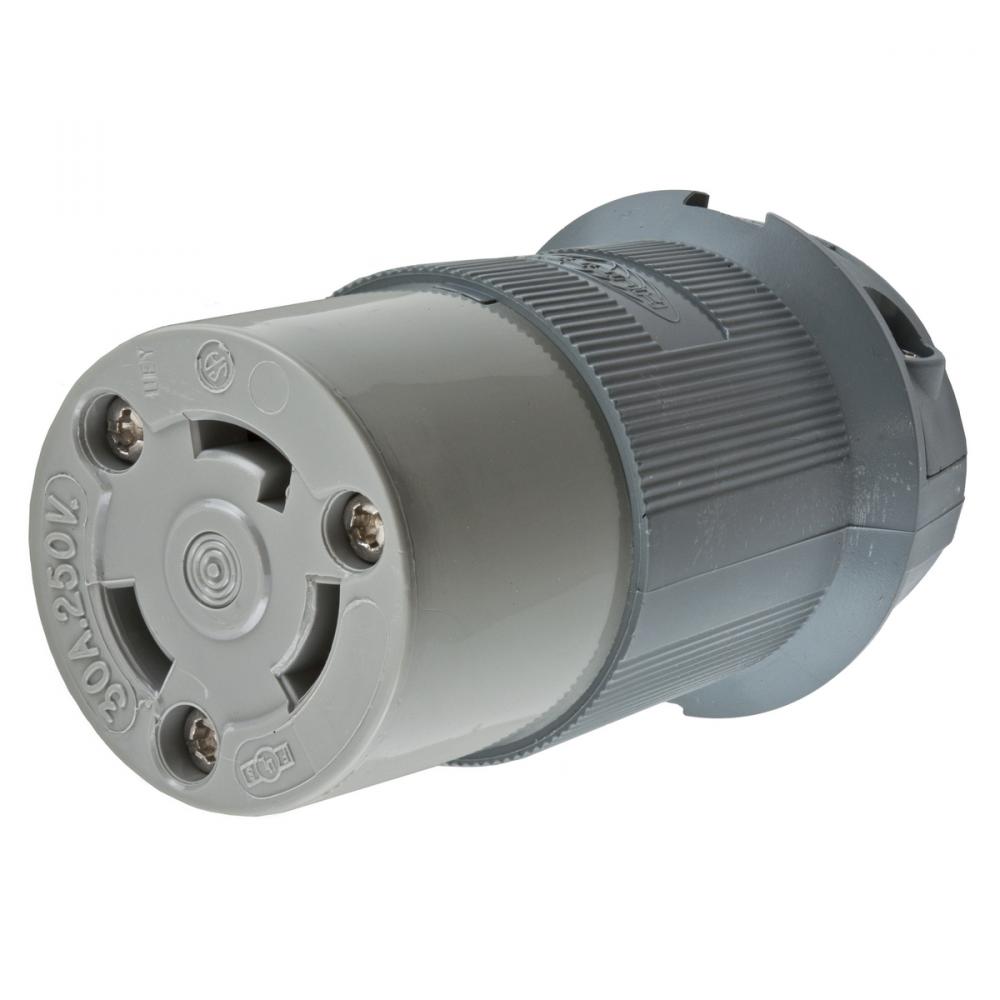

Twist-Lock® Insulgrip® Connector, 30A, 250V AC, 2-Pole, 3 Wire Grounding, NEMA L6,Heat Stabilized Nylon
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L6-30R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
3.86 in x 2.26 in x 2.26 in
Spec Sheet:
Special Features:
High Temperature Version
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Insulgrip
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.300 L
Manufactured By:
Hubbell Wiring Device-Kellems
