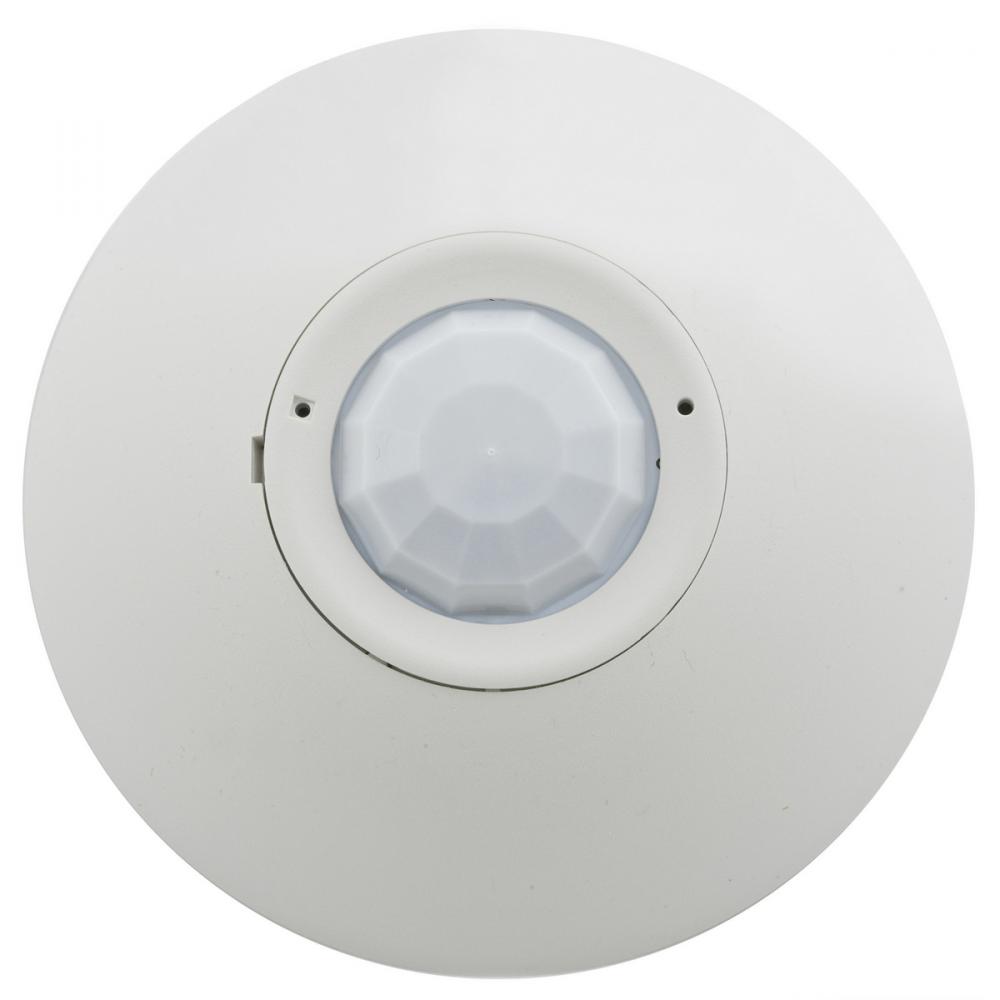

AT PIR OCCSENS, CEILING, 1500 SQ FT,USA by Hubbell Wiring Device-Kellems
- Part Number: ATP1500CU
- UPC: 00783585159171
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared Ceiling Sensor, 1500 Square Feet Coverage, USA
Specifications
Details
Category:
Lighting Controls
Application:
Ceiling Mount
Brand Name:
WIRING DEVICE-KELLEMS
Connector:
Wire Leads
Control Output:
Input Voltage
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
PIR= Red LED
Installation Link:
Line Drawing Link:
Load:
Load Is A Function Of The Control Unit
Mounting:
Screw Mount
Operating Cycles:
6,000 Cycles Minimum
Operating Temperature:
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Sensing Range:
42 to 54 Inches above the Floor
Sensitivity:
Adjustable W
Sensor:
Adaptive Passive Infrared
Special Features:
Adaptive Technology
Standard:
UL 20
Sub Brand:
HMOSS
Supply Voltage:
24V DC From Control Unit V
Target Size:
People in
Tech Drawing Link:
Type:
Ceiling and Wall Mount Sensors
UNSPSC:
39122236
Weight:
.550 L
Manufactured By:
Hubbell Wiring Device-Kellems
