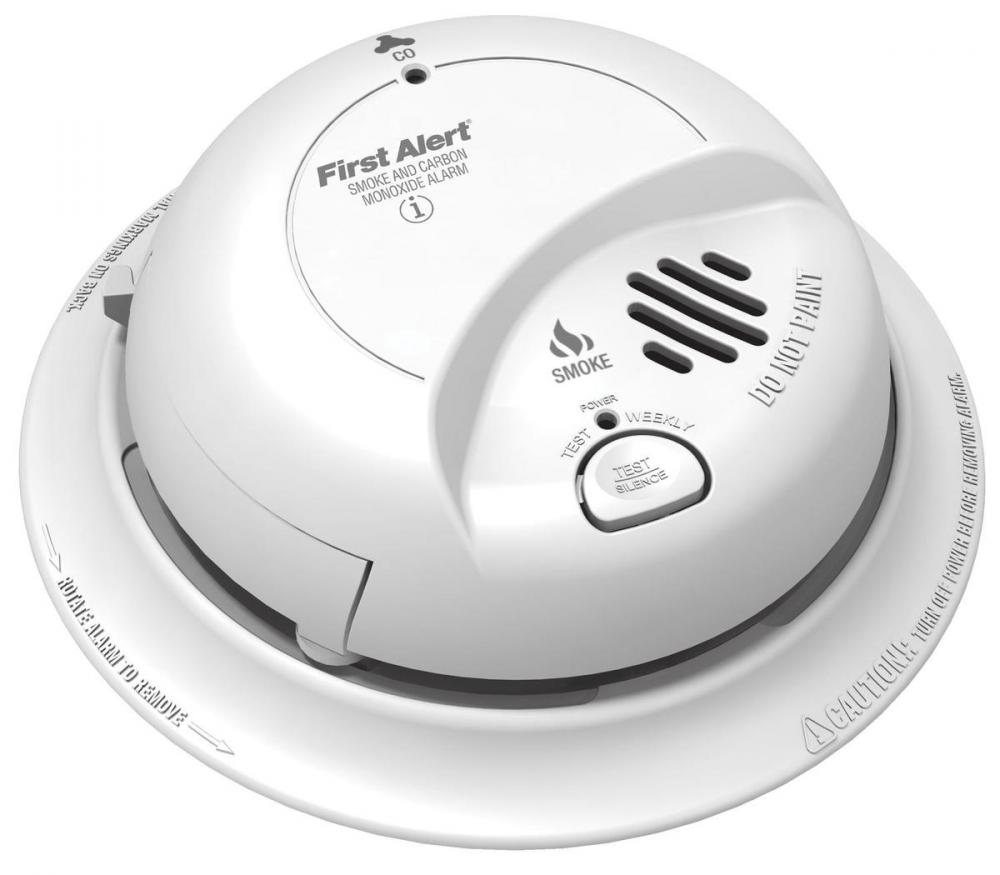

BRK SC9120B by BRK
- Part Number: SC9120B
- UPC: 00029054513069
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Specifications
Details
Electrical Category:
Safety
Electrical Subcategory:
Security And Signaling
Fire Prevention
Electrical Subtype:
Alarm Systems
Smoke Detectors
Alarm Type:
Audio
Application:
Single and or multiple station alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101.
Brand Name:
BRK
Brochure:
Color:
White
Country Of Origin:
MX
Dimensions:
5.6" diameter x 2.0" height
Enclosure Material:
Plastic
Environmental Conditions:
10 percent to 90 percent relative humidity (RH)
Length:
5.6900 IN
Mounting:
Electrical junction box, wall or ceiling
Operating Voltage:
120V AC 60Hz w/ 9V battery backup
Output Current:
0.09 Amps
Power Consumption:
0.09 Amps
RoHS Compliance:
No
Sensitivity:
Audio Alarm: 85dB at 10 feet
Sensor:
Dual Ionization & Electrochemical
Spec Sheet:
Standard:
UL217/UL2034
Standby Current:
0.09 Amps
Stock Type:
Shelf Stock
Temperature Range:
40 Degree F (4 Degree C) to 100 Degree F (38 Degree C)
Type:
Ionization Smoke & CO Combo Alarm
UNSPSC:
46191501
Weight:
0.610 L
Manufactured By:
BRK
