BRK HD6135FB by BRK
- Part Number: HD6135FB
- UPC: 00029054508102
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

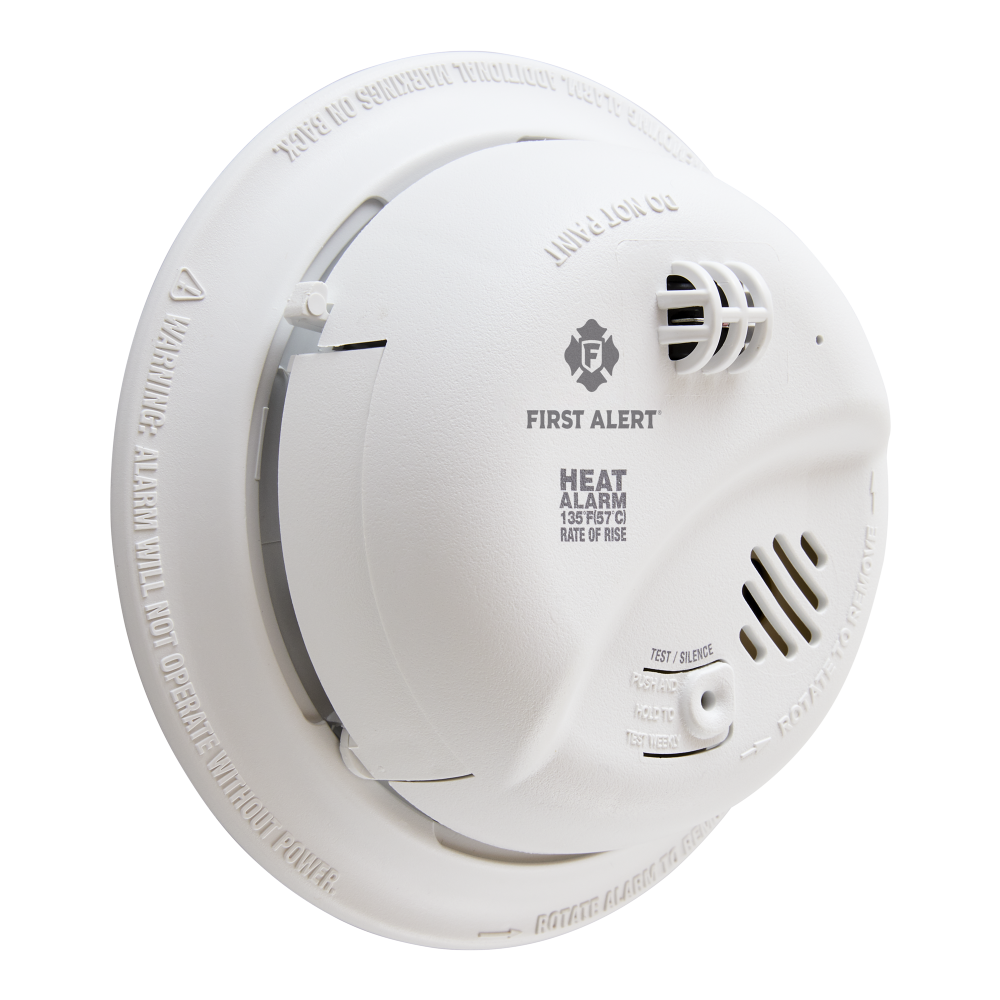

BRK HD6135FB Y BACKUP LATCHING LOW
Specifications
Details
Electrical Category:
Safety
Electrical Subcategory:
Security And Signaling
Fire Prevention
Electrical Subtype:
Alarm Systems
Alarm Type:
Audio
Application:
Single and or multiple station alarm specifically designed to supplement smoke alarms by providing a reliable early warning of heat from fire in residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories a
Brand Name:
BRK
Brochure:
Color:
White
Country Of Origin:
MX
Dimensions:
5.4" diameter x 2.2" height
Enclosure Material:
Plastic
Environmental Conditions:
10 percent to 90 percent relative humidity (RH)
Mounting:
Electrical junction box, wall or ceiling
Operating Voltage:
120V AC 60Hz w/ 9V alkaline battery backup
Output Current:
0.05 amps (standby/alarm)
Power Consumption:
120V AC 60Hz w/ 9V alkaline battery backup
RoHS Compliance:
Yes
Sensitivity:
Audio Alarm: 85dB at 10 feet
Sensor:
Thermistor
Spec Sheet:
Special Features:
135 degree fixed rate of rise, latching alarm indicator remembers which unit initiated an alarm, silence feature, two locking features (pins are provided to lock battery drawer and/or alarm to base), 85dB horn.
Standard:
UL539
Standby Current:
0.05 amps (standby/alarm)
Stock Type:
Shelf Stock
Sub Brand:
First Alert
Temperature Range:
40 Degree F (4 Degree C) to 100 Degree F (38 Degree C)
Type:
Heat Alarm
UNSPSC:
46191502
Weight:
.602 L
Manufactured By:
BRK
